ABB 3HAC17484-9/02

Description

Parameters

• Control Principle: Other¹
• Input Signal: Synchronous Serial SSI Signal (Single-turn, Multi-turn Encoder, Linear Sensor 10-26 Bit)¹
• Operating Voltage: 220VAC¹
• Output: 4-20mA Analog Output, RS485 Full Digital Output¹
• Environmental Temperature: -10…60℃¹
• Relative Humidity: <90%¹

Specifications

• Brand: ABB¹
• Model: 3HAC17484-9/02¹
• Application: Automation Control¹
• Range: 100-380¹
• Accuracy: 0.1-1.8¹
• Dimensions: 20018050mm¹
• Rated Voltage: 220VAC (Operating Voltage)¹

Size and Weight

• Size: 20018050mm

Series

• Part of ABB’s servo motor or related automation product series.

Features

• Multi-functional: Provides SSI displacement control¹.
• High Reliability: Designed for stable and reliable operation¹.
• Configurable: Supports zero, span, reverse, output adjustment, etc.¹.
• Communication: RS485 output with address rate setting and customizable communication protocol¹.
• Display: 6-digit numeric display with configurable decimal point position¹.
• Preset Switches: T4 type with 4 preset switches or T8 type with 8 preset switches (optional)¹

Role

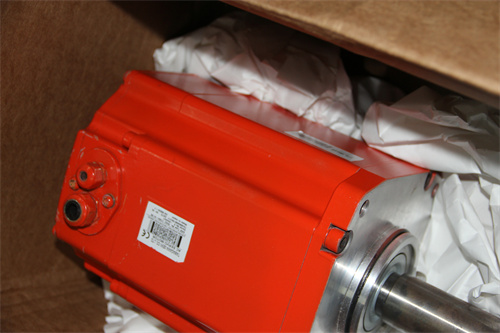

• Servo Motor: ABB 3HAC17484-9/02 is a servo motor or related control unit that provides accurate positioning and speed control for various automation applications¹.
• Automation Control: It is suitable for applications requiring high precision, such as robotics, CNC machines, textile machines, packaging machines, etc
