Description

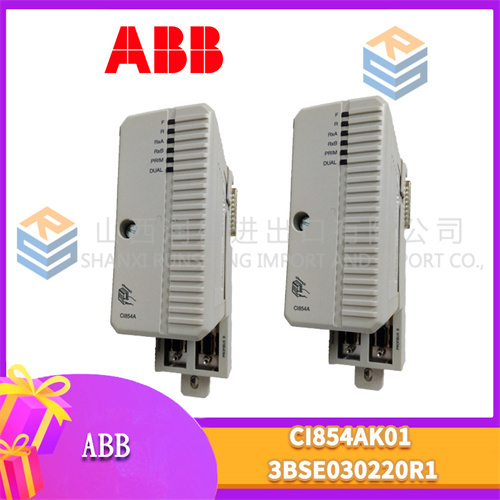

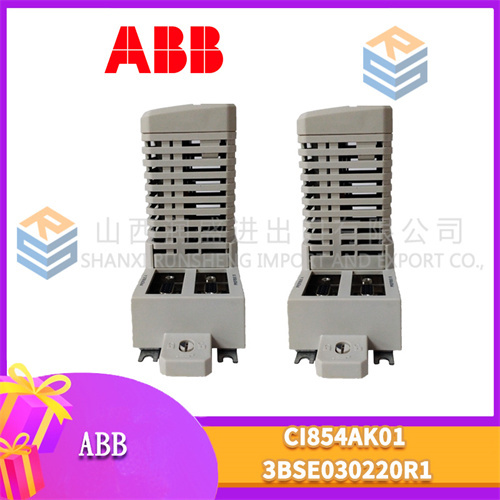

ABB’s 3BSE030220R1 CI854AK01 is a PROFIBUS-DP/V1 interface module specifically designed for industrial automation and control applications. Below is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Interface Type: It features a PROFIBUS-DP/V1 interface.
Communication Protocol: The module uses a serial communication interface that accepts commands from the upper-level system and transmits parameters according to a specific communication protocol.
Keyboard Scan Rate: The keyboard is scanned every 0.2ms for updating the display.
Dimensions and Weight:
Dimensions: The module has a depth/length of 274.5 mm, a height of 27 mm, and a width of 270 mm.
Weight: The weight of the module is 0.8 kilograms. However, there are conflicting reports suggesting a weight of 0.6 kg or 0.59 kg.
Series:
The 3BSE030220R1 CI854AK01 belongs to a series of communication modules designed by ABB for use in AC 800M control systems.
Features:
Compatibility: It is compatible with PROFIBUS DP, a high-speed multipurpose bus protocol used to interconnect field devices.
Redundancy Support: The module supports redundancy, enabling reliable communication even in the case of failures.
Modularity: The module can be directly mounted on a DIN rail, facilitating easy installation and integration into automation systems.
RoHS Compliance: It is not RoHS compliant and is intended for use in systems placed on the market before a specific date. For new installations, a different model (CI854BK01) is recommended.
Functions and Applications:
Communication and Control: The 3BSE030220R1 CI854AK01 is used to connect remote I/O and fieldbus instruments through the PROFIBUS DP interface, facilitating communication and control within industrial automation systems.
Integration with Other Devices: It can be linked with other devices using PROFIBUS link devices, enabling seamless integration and communication within larger automation networks.
Please note that the information provided here is based on the available references and may not cover all the specific details or the latest updates on the ABB 3BSE030220R1 CI854AK01 module. It is always recommended to refer to the official documentation or contact the manufacturer for the most accurate and up-to-date information.
