ABB 3BSE018161R1

Description

Parameters and Specifications:

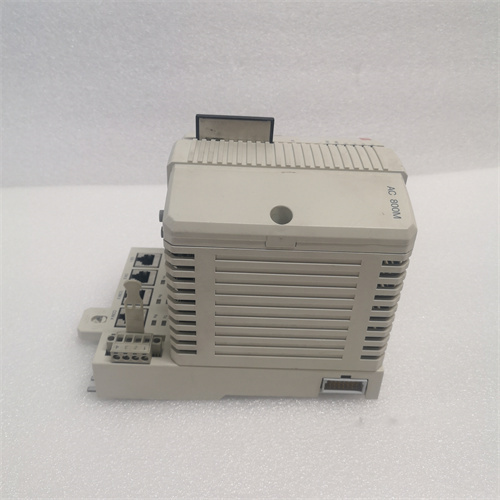

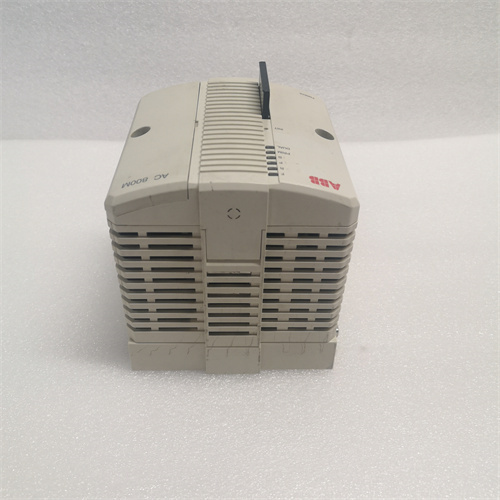

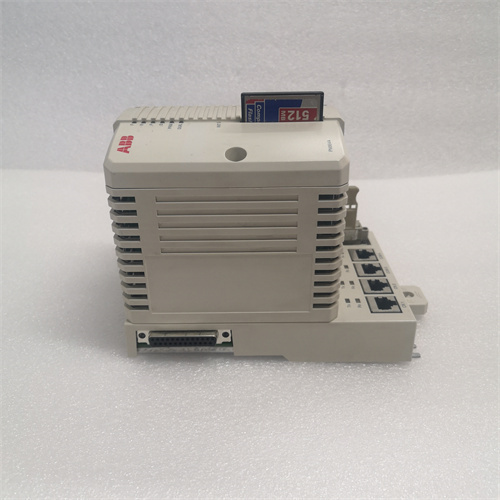

• Model: ABB PM864AK01 3BSE018161R1 (Controller/Field Control Processor)¹⁵⁶
• Control Principle: Other (Specifically designed for industrial automation and control systems)¹²
• Bandwidth: 50MHz¹
• Rise Time: ≤7ns¹
• Real-time Sampling Rate: 1GS/s¹
• Waveform Capture Rate: ≥2000wfms/s¹
• Vertical Deflection Coefficient: 1mV～20V/div¹
• Storage Depth: 25kpts¹
• Scan Time Base: 2ns～50s/div¹
• Trigger Types: Edge, Pulse Width, Alternate¹
• Interface: USB OTG¹
• Display: Color¹
• Additional Features: Unique screen copy function¹
• Power Supply: 100-240VAC RMS, 40-440Hz, CAT II¹
• LCD Size: Diagonal 178mm (7 inch, 64K, 800X480)¹
• Body Color: White + Gray¹
• Body Weight: 2.2Kg¹
• Body Dimensions: 306×147×122 mm¹

Series:

• ABB 800xA Series³

Features:

• High-performance Processing Capability: Equipped with a high-speed microprocessor and algorithms for efficient data processing and control functions⁴⁵.
• Multiple Communication Interfaces: Supports various communication protocols such as Modbus, Profibus, Ethernet, etc., for easy data exchange and communication with other devices and sensors⁴⁵.
• Real-time Control: Provides real-time control functionality to ensure rapid system response⁵⁶.
• Large Storage Capacity: Sufficient memory capacity for storing control programs, data, and historical records⁴⁵.
• Security: Includes security features like access control and encrypted communication to ensure system safety and stability⁴⁵.

Applications:

• Industrial Automation: Used for monitoring and controlling industrial production lines, factory equipment, and processes to improve efficiency, reliability, and quality³.
• Process Control: Applied in chemical, power, water treatment, and other process industries for accurate control of various parameters³.
• Power Control: Monitoring and controlling generators, switchgear, transformers, and power distribution systems in power systems³.
• Building Automation: Controls lighting, air conditioning, security systems, etc., within buildings to enhance energy efficiency and comfort³.
• Manufacturing: Controls machines, robots, automated workstations, and other manufacturing equipment³.
• Transportation and Logistics: Monitoring and controlling logistics and transportation systems such as automated storage equipment, logistics robots, and autonomous navigation vehicles³.
