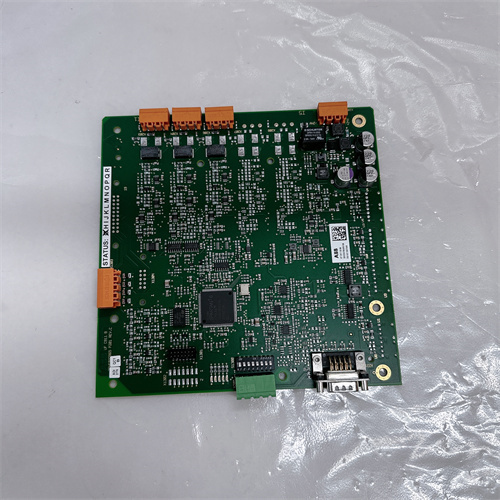

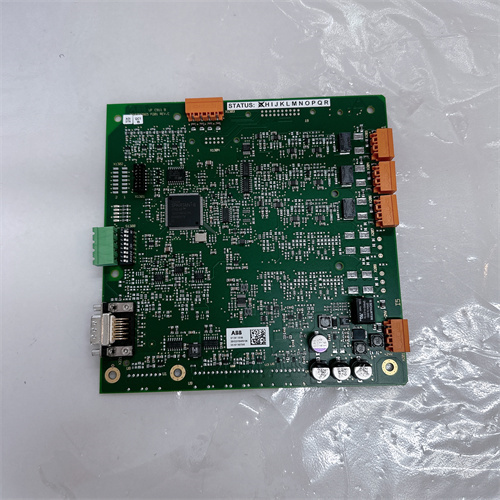

ABB 3BHE037864R0104

Description

{“deviceId”:”IOS_5DA664FB-00B3-4ABA-8CCA-3927A70F6A55″,”openFrom”:”m2u_production”,”source”:”m2u”,”userId”:”1177870989″,”data”:{“beautyMode”:1,”mv”:[“10739700393201441532”]}}

Parameters and Specifications

• Power Supply:
  • Dual redundant input, DC (9-36)V, typically DC24V.
  • Power consumption less than 4W.
  • DC1500V voltage isolation and reverse connection protection¹.
• Relay Alarm Output:
  • Fiber link failure and power failure alarm output.
  • Contact capacity: DC48V/1A¹.

Dimensions

• Width: 132mm
• Height: 105mm
• Depth: 52mm¹

Weight

• Approx. 800g (or 0.82 kg as mentioned in another source²).

Series

• Part of ABB’s automation and control system components.

Features

• Redundant Power Supply: Ensures high availability and reliability.
• Alarm Outputs: Provides fault indication for quick troubleshooting.
• Protection: IP30 protection rating with a corrugated aluminum reinforced enclosure.
• Mounting: 35mm DIN rail mounting for easy installation.
• Operating Environment:
  • Temperature: -10-70℃ (-40~+85℃ wide temperature optional).
  • Relative humidity: ≤90% (non-condensing).
  • Storage temperature: -40~80℃¹.
• Compliance:
  • EN55022:2010 (RE), EN61000-4-2:2001 (ESD), EN61000-4-3:2006 (RS), EN1122:2001¹.

Applications

• Used in automation and control systems for monitoring, controlling, and communicating³⁵.
