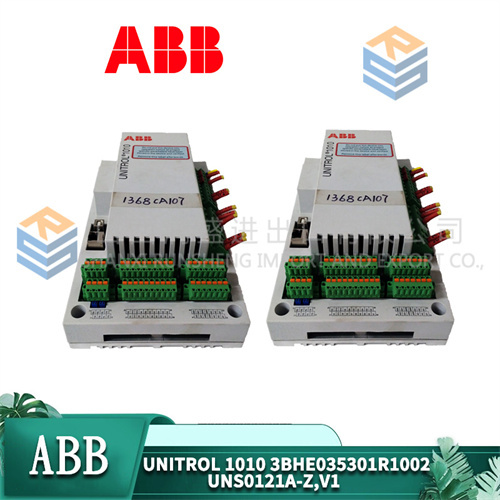

ABB 3BHE035301R1002

Description

Parameters and Specifications:

• Voltage: 220V¹
• Output Frequency: 62kHz³
• Accuracy: 0.2-0.5²³
• Range: 130-210²³
• Control Processor: 100系列FBM⁴
• Block Processing Cycle (BPC): 0.05, 0.1, 0.2, 0.5, 0.6, 1, 2, 5, 6, 10, 30 seconds; 1, 10, 60 minutes³
• Power Consumption (Non-Fault-Tolerant Module): 8.5 W⁴
• Input Voltage (Redundant): 24 V dc (typical)⁴
• Compliance: EN61326-1:2013 A-class emission and industrial immunity level; RoHS compliant⁴

Dimensions:

• Size: 2301050mm

Series:

• Part of ABB’s automation and electrical systems product line¹³⁴.

Features:

• Advanced CPU-based Control: Multi-CPU intelligent control with parallel redundant structure and advanced phase balancing skills²³.
• IGBT Inverter Technology: Combines with high-frequency pulse width modulation (PWM) to reduce system noise and power loss².
• Modular Design: Advanced modular design reduces mean time to repair (MTTR) and enhances maintainability².
• User-friendly Interface: Super intelligent power management with a clear LCD panel for UPS status¹.
• Remote Monitoring: Supports RS232 interface for remote monitoring and various diagnostic and alarm functions

Application:

• Used as an automatic voltage regulator²³.
• Ensures high-quality voltage output and efficiency under various workloads².
• Suitable for applications requiring precise voltage regulation and stability
