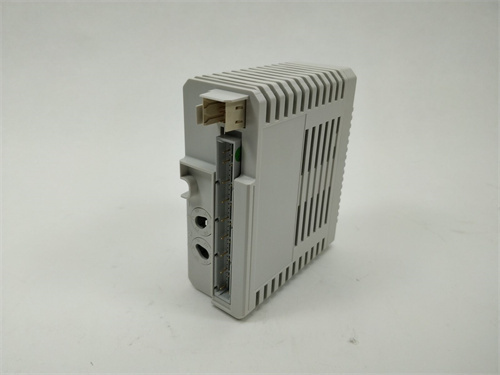

ABB 3BDH000741R1

Description

Parameters and Specifications:

• Model: 3BDH000741R1
• Brand: ABB
• Voltage: 24V DC¹²
• Power: 5W¹
• Temperature Range: -40℃ ~ 85℃¹
• Protection Class: IP65¹

Dimensions and Weight:

• Size: 10cm x 10cm x 10cm¹
• Weight: 0.5kg¹, alternatively stated as 2KG². (Note: There is a discrepancy in the weight provided, please refer to the official documentation for the exact weight.)

Series:

• 5SD²³

Features:

• High Precision Measurement: Utilizes advanced voltage measurement technology for accurate voltage signal measurement⁴.
• Wide Measurement Range: Able to accommodate different voltage signals, satisfying various industrial applications⁴.
• High Reliability: Made with high-quality electronic components and manufacturing processes, ensuring stable operation in harsh industrial environments⁴.
• Easy to Maintain: User-friendly interface and remote monitoring capabilities for easy configuration, control, and troubleshooting⁴.
• Safety: Incorporates safety measures to protect user data and information⁴.
• Scalability: Supports various configurations and expansion options, meeting diverse user needs⁴.
• Compatibility: Compatible with multiple industrial automation control systems for easy integration⁴.

Applications:

• Designed for use in industrial automation fields, such as factory automation control systems and robot control¹.
• Specifically, the 3BDH000741R1 model can be used as a voltage measurement module⁴ or a temperature input test module⁵.

Role as a Voltage Measurement Module:

• Provides high-precision voltage measurement with a wide measurement range⁴.

Role as a Temperature Input Test Module:

• Detects temperature through internal or external sensors⁵.
• Converts temperature signals into electrical signals for processing⁵.
• Transmits processed temperature data to the main controller or other devices for temperature monitoring, control, alarm, and recording⁵.
