Description

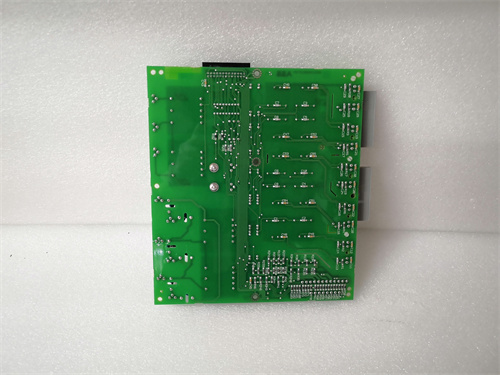

ABB 3ASC25H208 DATX100 is a pulse transformer board specifically designed for industrial automation and control systems. Here is an overview of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Pulse Transformer Signals: The board is designed to handle signals with frequencies ranging from 10kHz to 100kHz, which is significantly higher than standard power transformers.
Voltage and Current Compatibility: It is compatible with voltages and current ranges suitable for industrial automation systems, although specific values may vary depending on the application.
Dimensions and Weight:
Dimensions: Exact dimensions may not be available without referring to the official product documentation. However, it is likely to be of a size suitable for integration into industrial control panels or racks.
Weight: The weight of the board is approximately 1.03kg to 1.2kg, depending on the specific model or variant.
Series:
ABB 3ASC25H208 DATX100 belongs to a series of pulse transformer boards or communication modules offered by ABB for industrial automation applications.
Features:
Signal Isolation: The board provides signal isolation, which helps to minimize interference between different signal lines.
Communication Interface: It may feature communication interfaces that enable data exchange with other devices or systems within the automation network.
Durability: Designed for industrial environments, the board is expected to offer high durability and reliability.
Compatibility: The board is likely to be compatible with various automation systems and PLCs, enabling seamless integration.
Functions and Applications:
Pulse Signal Processing: ABB 3ASC25H208 DATX100 is primarily used for processing and transmitting pulse signals in industrial automation systems.
Monitoring and Control: It can be used to monitor and control various industrial processes and equipment, especially those involving rotating devices.
Integration with PLCs: The board can be integrated into PLC systems, allowing for real-time monitoring and management of device positions and movements.
