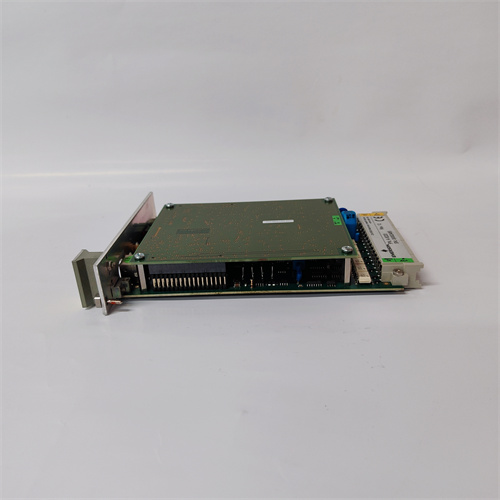

A6220

Description

series
The A6220 may belong to a specific EMERSON family, such as modules for the TSI system, a safety system for steam engines.
trait
Adjustable output voltage: The output voltage is optional between 1.0V and 5.0V
Thermal overload protection: protects the equipment from damage in the case of overheating
Current limit: When the output is short-circuited to the ground, the current limit is reduced to 250mA to prevent equipment damage
High accuracy: Possible high precision voltage and current output characteristics

argument
Voltage: 24V (there may be other voltage options, but this information is more common)
Current: Up to 1.0A May be supported (similar to the output current characteristics of the A6220/A6410/A6824)
Output voltage range: Optional from 1.0V to 5.0V
Thermal protection: With thermal protection and thermal overload protection function, when the junction temperature exceeds TJ=165°C, the OTP circuit will start the thermal shutdown function
specification
Technology based: Possible CMOS based low voltage differential positive voltage regulator
Design recommendations: It is recommended that PCB design use separate ground planes for VDD and VOUT, and that each ground plane is connected only at the GND pin of the device. VDD and GND lines should be wide enough to reduce impedance and noise
