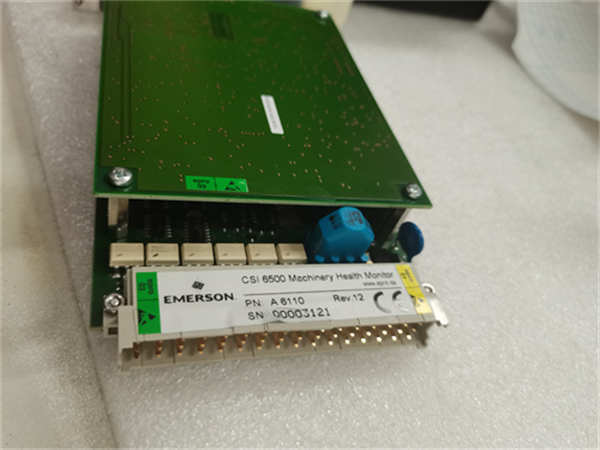

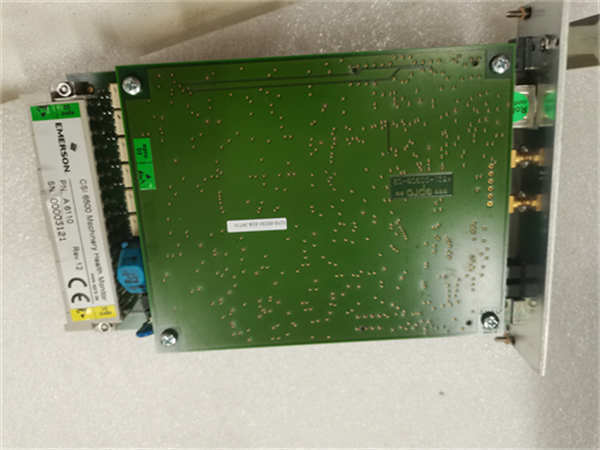

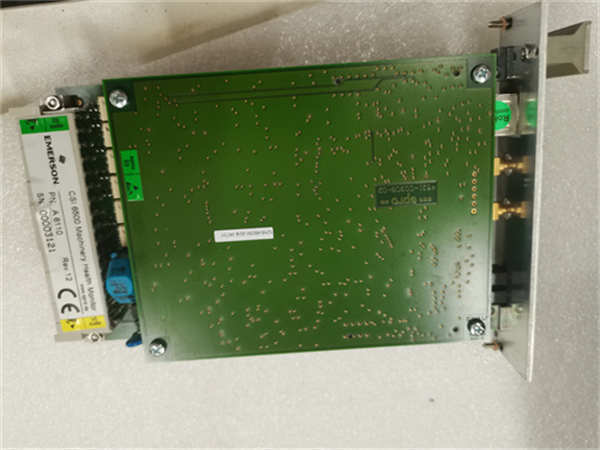

A6110

¥5,214.00

Parameters and specifications:
Type: A6110 may be a shaft vibration monitoring module, which is a component of the A6000 machine monitoring system. The module uses eddy current sensors for non-contact measurements such as axial and radial shaft displacement, shaft eccentricity, shaft vibration, etc.
Measurement principle: inductive type.
Supply voltage: 5 V (3… 5 k Hz).
Sensitivity: 270 mV/V (5 k Hz full scale).
Linear error: < 2%.
Temperature range: -20… +120℃.
Category:

Description

Parameters and specifications:
Type: A6110 may be a shaft vibration monitoring module, which is a component of the A6000 machine monitoring system. The module uses eddy current sensors for non-contact measurements such as axial and radial shaft displacement, shaft eccentricity, shaft vibration, etc.
Measurement principle: inductive type.
Supply voltage: 5 V (3… 5 k Hz).
Sensitivity: 270 mV/V (5 k Hz full scale).
Linear error: < 2%.
Temperature range: -20… +120℃.
Size and weight:
Size: Different models and applications of the A6110 may have different sizes. For example, some shaft vibration monitoring modules may have dimensions of 24x17x6.5cm, while other eddy current sensors may have dimensions of 90 x 33 x 243mm (W x H x L).
Weight: Again, different models of the A6110 may have different weights. Eddy current sensors may weigh 3.0/2.0kg (gross/net), while other shaft vibration monitoring modules may weigh less, such as 0.46kg.

Series:
The A6110 may belong to the EPRO (or German EPRO/ Philips) company’s product family, which is widely used in various industrial fields and laboratories.
Features:
Dual channel shaft vibration measurement: The A6110 is able to monitor the radial relative vibration of the shaft, and each channel can be used independently.
High reliability: Eddy current sensors are small, reliable, and have the advantage of non-contact measurement.
Extended features: The A6110 has extended self-test, built-in sensor self-test, password protected operation level, and RS232/485 port for field configuration and communication.
Explosion-proof rating: In some applications, the A6110’s explosion-proof rating can reach Eex ib IIC T6/T4.

Functions:
The A6110 is primarily used to monitor and protect various types of turbomachinery such as steam turbines, gas turbines, compressors, fans, gearboxes, blowers, centrifuges, etc.
It can measure the gap between the rotating part and the fixed part, the vibration and eccentricity of the shaft, the radial and axial displacement of the shaft and other physical quantities.
The measurement data of the A6110 can be combined with the measurement data of other modules to form a turbomachinery protection system, or provided as input to analytical diagnostic systems, fieldbus systems, decentralized control systems, etc.
