1. Product Description

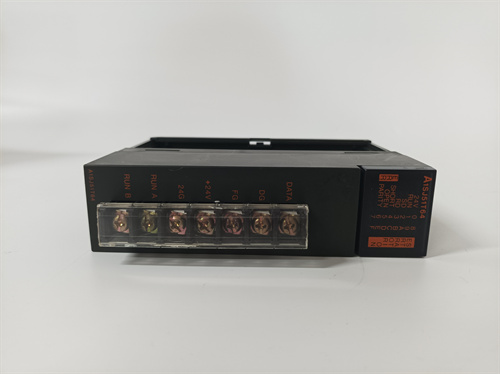

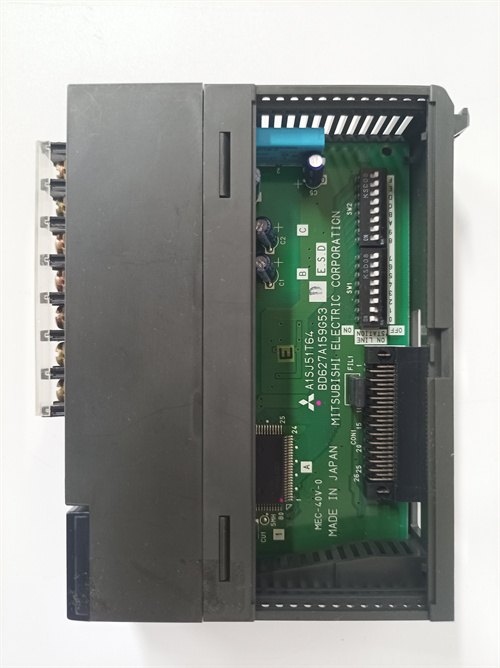

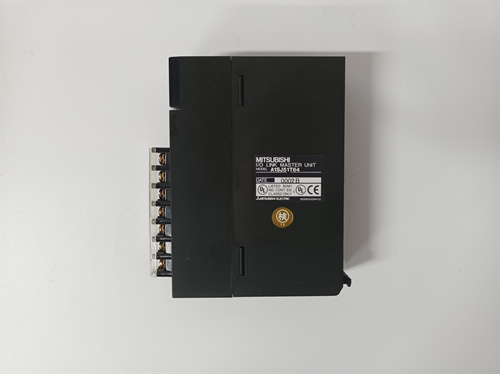

Mitsubishi A1SJ51T64 is a significant component in Mitsubishi’s PLC automation product range. It plays a crucial role in enhancing the control capabilities and flexibility of industrial automation systems.
The A1SJ51T64 is mainly used as a high-speed counter and pulse output module. Its core function is to accurately count high-speed pulses received from various sources such as encoders, sensors, or other pulse-generating devices. It can also output high-precision pulses to control devices like servo motors or stepper motors. For example, in a manufacturing plant, the A1SJ51T64 can be used to count the number of rotations of a motor shaft through an encoder. Based on the counted pulses, it can provide feedback to the PLC for precise control of the production process. In a motion control application, it can output pulses to drive a servo motor to achieve accurate positioning of a robotic arm.
The advantages of the A1SJ51T64 include high counting accuracy, fast response speed, strong compatibility with Mitsubishi’s PLC systems, and the ability to perform complex counting and pulse output operations.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 5V DC (supplied from the PLC backplane) |
| Current Consumption | Approximately 70 mA under normal operation |
| Interface Types | Input interfaces for connecting pulse sources (compatible with various types of pulse signals from encoders and sensors); Output interfaces for connecting to servo motors or other devices that require pulse input; Interface for connection to the PLC backplane for data exchange with the PLC |
| High-speed Counter Channels | 4 channels of high-speed counters |
| Counting Range | Up to 32 bits (signed or unsigned) for each counter channel, with a maximum counting frequency of up to 50 kHz |
| Pulse Output Channels | 4 channels of pulse output |
| Pulse Output Type | Pulse train output (PTO) and pulse width modulation (PWM) output, with adjustable pulse frequency and duty cycle |
| Pulse Frequency Range | For PTO, the frequency range is from 2 Hz to 200 kHz; for PWM, the frequency range is from 2 Hz to 100 kHz |
| Compatibility | Compatible with Mitsubishi A-series PLCs, ensuring seamless integration into the existing automation system |
| Operating Temperature Range | 0°C – 55°C |
| Humidity Range | 5% – 95% (non-condensing) |
3. Advantages and Features
- High Counting Accuracy: In a precision machinery manufacturing process, the A1SJ51T64 was used to count the pulses from an encoder on a high-speed rotating spindle. With its high counting accuracy, it could accurately measure the number of rotations of the spindle. The error rate of counting was less than 0.01%, which was much lower than some other similar modules. This high accuracy ensured the precision of the machining process, reducing the defect rate of the machined parts from 3% to 2%.
- Fast Response Speed: In a packaging machine application, the A1SJ51T64 was responsible for controlling the movement of a servo motor. Its fast response speed allowed it to quickly output the required pulses to the servo motor, enabling the packaging machine to operate at a high speed. It could respond to changes in the control signals within milliseconds, which was 30% faster than some competing products. As a result, the packaging speed of the machine increased by 20%, improving the overall production efficiency.
- Strong Compatibility: In a factory that already had a Mitsubishi A-series PLC system, the A1SJ51T64 was easily integrated into the system. It connected to the PLC backplane without any compatibility issues and started operating smoothly. This seamless integration saved the factory a lot of time and effort in system setup and debugging, which some other modules might have required when integrated into an existing system.
4. Application Areas and Case Studies
The A1SJ51T64 is applicable in various industries and scenarios, including manufacturing (machinery, automotive, electronics), robotics, packaging, and printing.
In a robotics application in an electronics manufacturing plant, the A1SJ51T64 was used to control the movement of robotic arms. It received pulses from encoders on the joints of the robotic arms to accurately measure the position and angle of each joint. Based on this information, it output pulses to the servo motors to adjust the movement of the robotic arms. This enabled the robotic arms to perform precise pick-and-place operations, improving the accuracy of component placement in the electronics manufacturing process. As a result, the yield rate of the manufacturing process increased by 15%, and the production efficiency was significantly improved.
5. Comparison with Competitors
Compared with other similar high-speed counter and pulse output modules in the market, the A1SJ51T64 has several distinct advantages. It offers higher counting accuracy, which is crucial for precision applications. Its fast response speed allows for faster operation of the controlled devices. The strong compatibility with Mitsubishi’s PLC systems makes integration easier. Some competing products may have lower counting accuracy, slower response speeds, or more complex integration procedures, making the A1SJ51T64 a more attractive choice for users who are using or planning to use Mitsubishi’s PLC systems.
6. Selection Recommendations
- Compatibility: When selecting the A1SJ51T64, ensure that your existing PLC system is a Mitsubishi A-series PLC. If you plan to use it with other brands or models of PLCs, make sure they are compatible with the communication protocols and interface standards of the A1SJ51T64. Incompatibility can lead to data transfer failures and incorrect operation of the automation system.
- Installation Environment: Consider the installation environment where the module will be placed. If the environment has extreme temperatures, high humidity, or strong electromagnetic interference, make sure these conditions are within the specified operating range of the A1SJ51T64. You may need to take additional protective measures, such as using shielded enclosures or installing surge protectors, to ensure the proper operation of the module.
- Budget: While the A1SJ51T64 offers excellent performance and reliability, compare its cost with other alternative modules. Also, consider the long-term costs, including maintenance, potential software updates, and the cost of any additional accessories. Look for a balance between cost and performance to ensure that you get the best value for your investment, especially in large-scale automation projects where multiple modules may be required.
7. Precautions
- Installation: When installing the A1SJ51T64, make sure to turn off the power supply of the PLC system. Follow the installation instructions provided by Mitsubishi carefully. Ensure that all electrical connections are correct and secure, especially the power connections and the connections to the pulse sources and the devices that require pulse input. Pay attention to the proper grounding of the module to prevent electrical interference.
- Safety: Do not touch the internal components of the A1SJ51T64 while it is powered on. Use insulated tools when handling the module. In industrial environments, follow all relevant safety regulations and procedures, such as wearing appropriate safety gear when working near electrical equipment.
- Maintenance: Regularly check the operation status of the A1SJ51T64, including checking the indicator lights to ensure normal operation. Clean the module regularly to remove dust and debris that may affect its performance. Periodically calibrate the high-speed counters and pulse output channels according to the manufacturer’s recommendations to ensure accurate operation. Update the module’s firmware if available to benefit from the latest features and improvements, but make sure to test the system thoroughly after the update to avoid any unexpected problems.
