Description
Size and weight:
Size: The specification size is 9905-144mm
Weight: 3.16kg
Series:
The 9905-144 is part of WOODWARD’s 9905 series
Features:
Input non-saturation: Due to the Rogowski principle, the magnetic core in the traditional transformer or Hall principle is abandoned, so that the product input range is large without affecting the performance
Fast response time: The response time can reach us level
Frequency response width: the bandwidth range can reach more than 20khz
Good linearity: the linearity of the output can reach 0.2%
High accuracy: the overall accuracy is within 1%
Small volume, light weight: Compared with traditional transformer principle and Hall principle products, under the same input range conditions, smaller volume and lighter weight
Parameters and specifications:

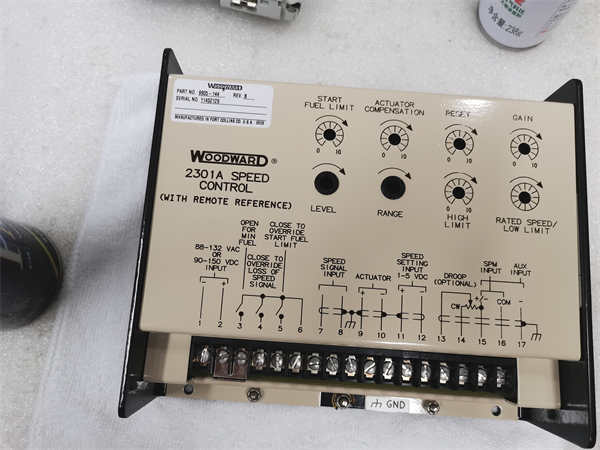

Model: 9905-144
Brand: WOODWARD
Control principle: analog module
Application: Suitable for all kinds of electrical systems, electroplating, electrolysis industry AC high current measurement and control
Rated input: 0 ~ 20 kaac
Rated output: 0 ~ 20 madc, 0 ~ 5 vdc, 4 ~ 20 madc
Accuracy: Level 1.0
Linear range: 0 ~ 120%
Isolated voltage: 5000vdc/1 minute
Functions:
Used for system speed control
An independent single-pole double-throw module is available
