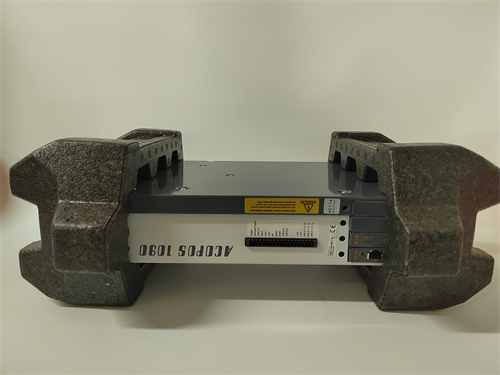

8V1090.00-2

Description

series
The 8V1090.00-2 belongs to the B&R ACOPOS servo drive family. The series also includes other models, such as 8V1010.50-2, 8V1016.50-2, 8V1022.00-2, etc., with different power and performance characteristics.
trait
High integration: Integrated line filter, brake resistance and electrical safety restart suppression, improve the stability and safety of the system.
High performance: Suitable for applications requiring high precision and dynamic response.
Flexibility: By adjusting the position proportional gain, position feedforward gain and other parameters, it can flexibly adapt to different control requirements.
effect
Drive and control: As a servo drive, the 8V1090.00-2 is mainly used to drive servo motors for precise position, speed and torque control.
Automation applications: widely used in the field of industrial automation, such as machine tools, robots, packaging machinery, textile machinery, etc., to improve production efficiency and product quality.

Parameters and specifications
Model: 8V1090.00-2
Operating voltage: 3×400-480V (different sources may vary slightly, but mainly concentrated in the 3×400-480V range)
Rated current: 8.8A
Rated power: 4kW
Integrated features: line filter, brake resistance, electrical safety restart suppression
Position proportional gain: The larger the set value, the higher the gain, the greater the stiffness, and the smaller the position lag
Position feedforward gain: The larger the value, the smaller the position lag, but may make the system position unstable, prone to oscillation
Output torque limit: The internal torque limit of the servo motor can be set, expressed as a percentage of the rated torque
