Description
–Parameters:

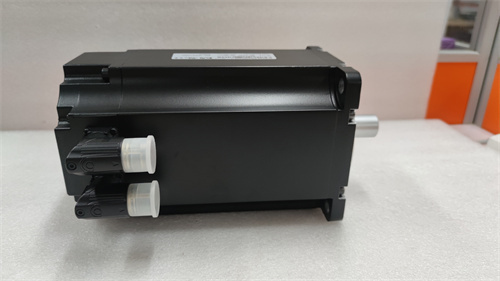

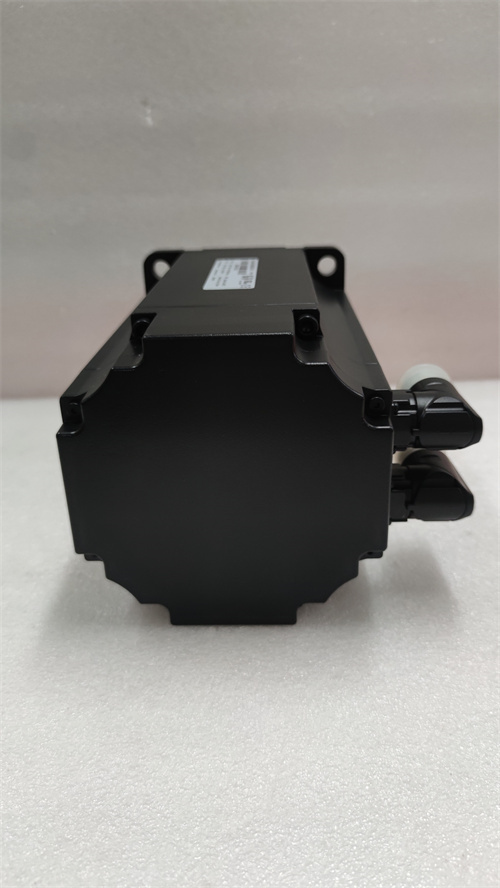

–Type: Synchronous Motor1
–Nominal Power: 3644W1
–Maximum Current: 33A1
–Maximum Speed: 9,000 RPM1
–Specifications:
–Pole Pairs: 41
–Rotor Inertia: 8.19 kgcm²1
–Electrical Time Constant: 11.1 ms1
–Stator Inductance: 12.5 mH1
–Stator Resistance: 1.127 Ohms1
–Dimensions & Weight:
–Weight: Approximately 10.4 kg
–Series:
- Part of the 8LS series of motors by B&R1
–Characteristics:
–Optimized Torque Fluctuation: Provides good controllability1
–Efficient Cooling: Uses natural convection as a cooling method1
–High Durability: Designed for a wide range of applications due to its large overload capability1
–IP64 Protection: Dust-tight and protected against water splashes1
–Integrated Encoder: Features an EnDat encoder for precise position feedback1
–Role:
–Precision Control: Ideal for applications requiring precise speed and position control1
–Industrial Automation: Used in various industries such as packaging, metal processing, and food and beverage1
–Efficient Operation: Designed to operate efficiently over a wide temperature range (-15°C to +40°C)
