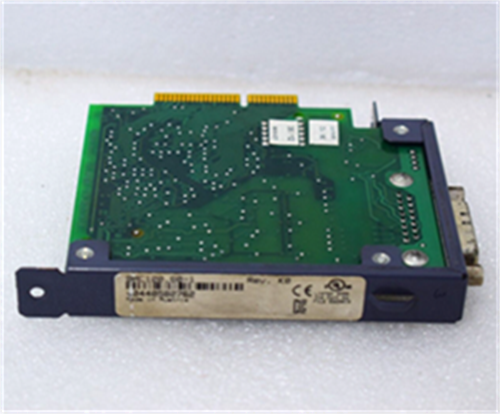

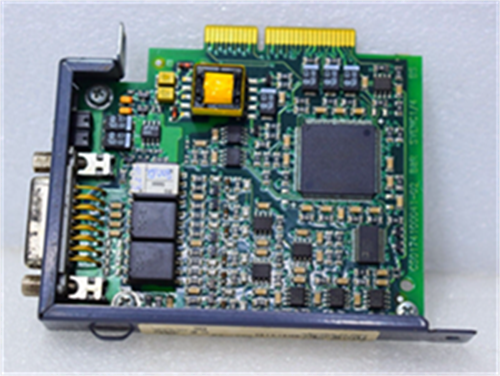

8AC123.60-1

Description

‌Parameters & Specifications‌:
–‌Model‌: 8AC123.60-112.
–‌Series‌: ACOPOS Series12.
–‌Power Consumption‌: Up to 7.5W, depending on encoder current consumption1.
–‌Encoder Inputs‌: Supports incremental encoders and SSI encoders1.
–‌Signal Transmission‌: Differential signal transmission with electrical isolation1.
–‌Input Frequency‌: Up to 200 kHz1.
–‌Operating Temperature‌: 5°C to 40°C2.
–‌Storage Temperature‌: -25°C to 55°C2.
‌Dimensions & Weight‌:
–‌Dimensions‌: 200mm x 40mm x 140mm
–‌Weight‌: 1.25kg

‌Series‌:

• Part of B&R’s ACOPOS modular drive system16.
  ‌Features‌:
  –‌High Compatibility‌: Compatible with various encoder types, including incremental and SSI encoders1.
  –‌Electrical Isolation‌: Provides electrical isolation for signal transmission, enhancing system reliability1.
  –‌Protection Mechanisms‌: Includes short-circuit and overload protection1.
  –‌Certifications‌: CE certified2 and possibly others.
  ‌Functions‌:
  –‌Encoder Interface‌: Serves as an interface module for encoders, converting encoder signals into digital data for use in automation systems1.
  –‌Motion Control‌: Enables precise motion control, such as point-to-point, speed, and torque control6.
  –‌System Integration‌: Integrates seamlessly into B&R’s automation systems, enhancing overall system performance and reliability6.
  ‌Conclusion‌:
  The 8AC123.60-1 encoder module from B&R Automation is a versatile component designed for use in industrial automation systems. Its high compatibility with various encoder types, electrical isolation, and protection mechanisms make it an ideal choice for encoder signal processing in demanding industrial environments. Its integration into B&R’s automation systems ensures seamless operation and reliable performance, supporting precise motion control and overall system optimization.
