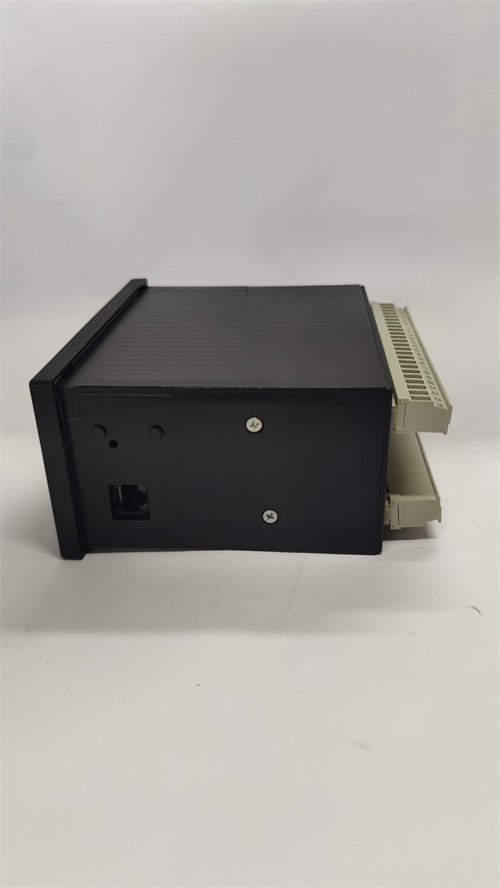

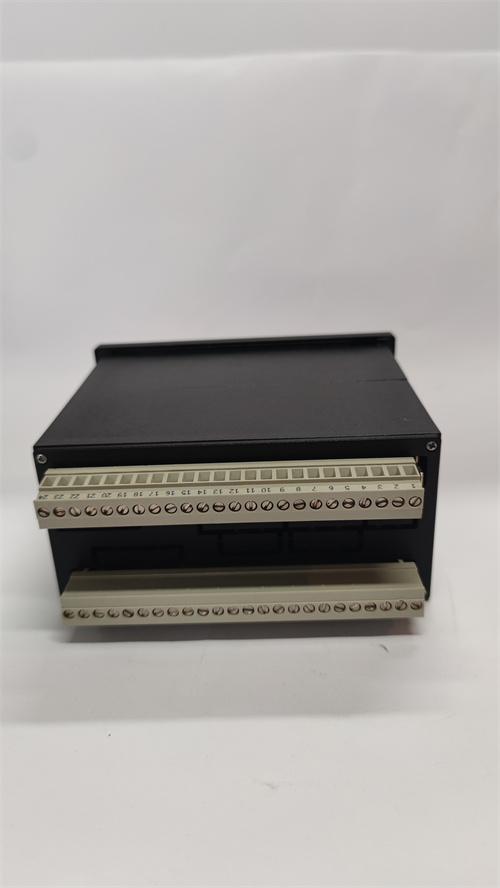

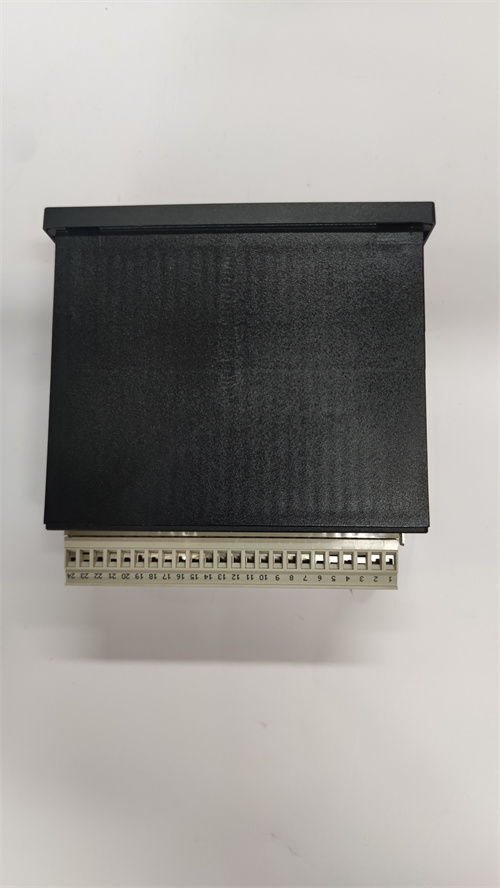

8440-1706

Description

specification
Control features: Includes circuit breakers, power factor and load factor control, and combined synchronization capabilities with synchronous load sharing and generator protection options
Power parallel operation: with active power control, true root-mean-square power calculation, soft unloading features, and power factor control and set points achieved by adjusting parameters
Special functions: isolated operation control function and dead bus operation function
Size and weight
Size: 144 mm ×72 mm ×122 mm
Weight:
At least 800 grams, or 1.76 pounds
Some information indicates that the weight may be 2KG or more

argument
Model number: 8440-1706
Category: SPM-D11 Synchronizer category
Voltage:
DC input: may include 24VDC (specific may vary by application)
AC input: 120 VAC/240 VAC (real RMS)
Current:
Input current: may include 500mA (specific may vary by application)
Ac input current: 5 A real RMS
Maximum output current: 15A (specific may vary by application)
Power: The output power may reach 360W
Power consumption: Maximum power consumption 18W (VDC)
