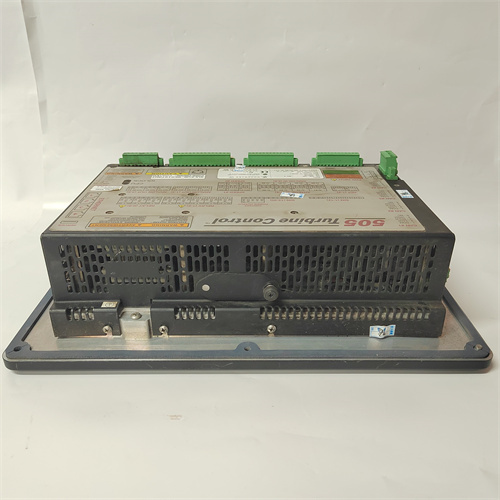

8200-1302

Description

Parameters and specifications
Series: The 8200-1302 is part of the Woodward 505D series of digital governor turbine control products.
Power Supply: LVDC (18-32 Vdc) power supply with Marine/ATEX compliance.
Input voltage range: 18-36 VDC (isolated).
Operating temperature range: -22 to 158 degrees Fahrenheit (or -30 to 70 degrees Celsius).
Storage temperature range: same as operating temperature range, i.e. -22 to 158 degrees Fahrenheit (or -30 to 70 degrees Celsius).

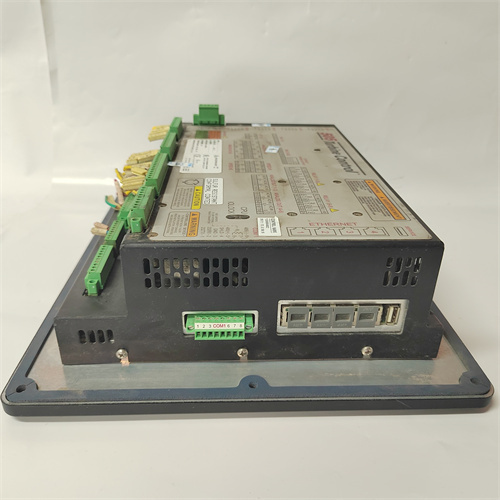

Communication port: Supports Modbus communication port for configuration and communication.
Size and weight
Screen size: 8.4-inch LCD display.
trait

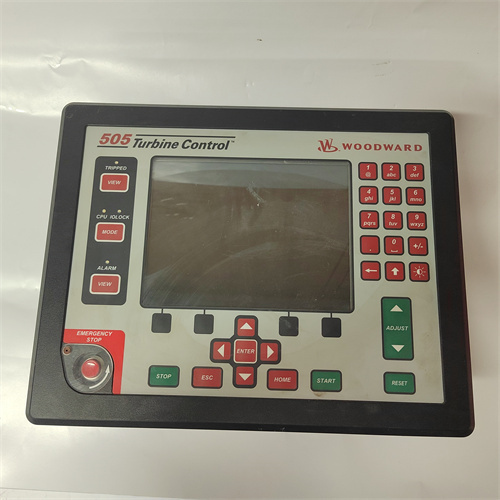

Advanced Integrated multilingual interface: Equipped with an HMI screen, it has an advanced integrated multilingual interface for easy configuration and operation.
Multiple features: Automatic start sequencing for hot and cold starts, temperature input options, critical speed avoidance in three-speed segments, ten external alarm inputs and ten external DI trip inputs, etc.
Three normal operation modes: configuration mode, operation mode and calibration mode.
Redundant speed inputs: Includes two redundant speed inputs that accept a magnetic pickup unit, eddy current probe, or proximity probe.
Analog inputs and outputs: Has analog inputs (8) that can be configured for multiple functions and has two 4-20 mA control outputs and eight Type C relay contact outputs.
Front panel controls: Include emergency trip keys, backspace/delete keys, shift keys, and view, mode, ESC, and home keys.
EMC immunity: The product complies with EMC immunity EN 61000-6-2 standard and can work stably in electromagnetic interference environment.
Housing and protection: The IACS UR E10 housing (commercial Marine) provides a degree of physical protection with ATEX, IP-54 and pollution Level 3 protection features.
