5SHY4045L0006

Description

‌ Specifications ‌ :

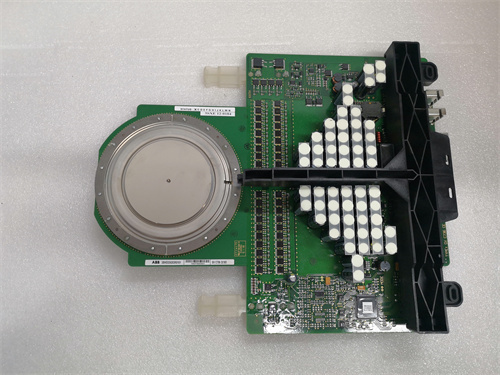

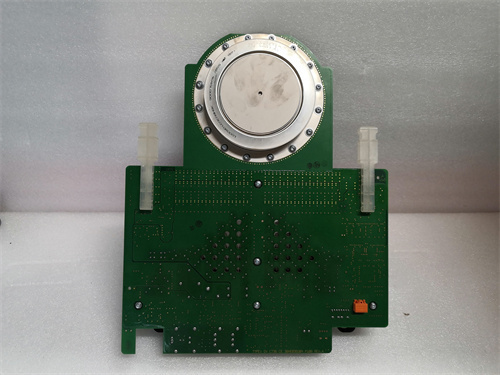

5SHY4045L0006 is ABB’s Insulated Gate Bipolar Transistor (IGCT) high voltage inverter card, belonging to ABB’s 5SHY series IGCT product series
The product has a high-performance processor and large capacity memory, support a variety of communication interfaces, such as Ethernet/IP, Modbus TCP/IP and so on

‌ Weight ‌ :

Different sources give different weight information. One source gives it a weight of 2KG, another gives it a weight of 3kg, and another gives it a weight of 35kg.

‌ function ‌ :

It is mainly used to control the speed and running state of the high voltage motor
It can convert the frequency and voltage of the power supply into the parameters suitable for the motor operation, and realize the speed regulation, energy saving and optimal control of the motor
It plays an important role in industrial automation and control systems, providing reliable and efficient solutions for motor drives

‌ parameter ‌ :

Maximum rated current: 4000 A
Maximum rated voltage: 4500 V
Maximum rated on-off loss: 18000 W
Maximum rated switching frequency: 1600 Hz
Minimum rated gate pulse current: 10 mA
Minimum rated gate pulse voltage: 15 V
Number of tubes: 1
Cooling method: water cooling

‌ Size ‌ :

Specifically mentioned dimensions of 91mm
