5SHY4045L0006

Description

‌ Specifications ‌ :

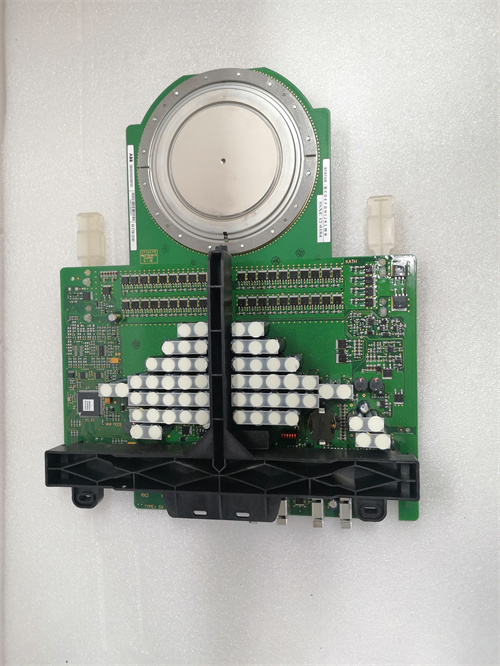

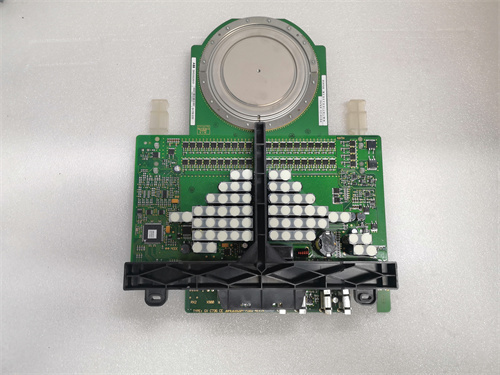

5SHY4045L0006 belongs to ABB’s Insulated Gate Bipolar Transistor (IGCT) high voltage inverter clamp, which is an important component in power electronics applications, especially in frequency converters and drive systems. It takes the form of a specific module package, such as TO-247AB2, which is suitable for large power electronic devices developed by medium voltage inverters

‌ Weight ‌ :

Its weight varies depending on the source. Some information indicates the weight of 2KG, others indicate the weight of 3kg 5 or 35kg

‌ function ‌ :

It is mainly used to control the speed and operating state of the high-voltage motor, and realize the speed regulation, energy saving and optimal control of the motor by converting the frequency and voltage of the power supply to meet the operating needs of the motor. It plays an important role in industrial automation and control systems, providing reliable and efficient solutions for motor drives

‌ parameter ‌ :

The maximum rated current is 4000A and the maximum rated voltage is 4500V2. In addition, it has a high switching frequency (maximum rated switching frequency of 1600 Hz) and high junction temperature tolerance (maximum rated junction temperature of 175°C). These parameters show that it is suitable for high power and high voltage application scenarios.

‌ Size ‌ :

Specific dimensions such as 91mm
