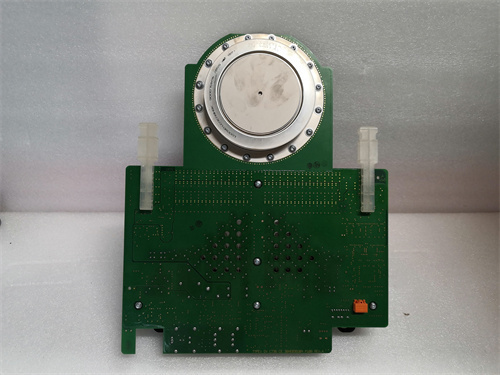

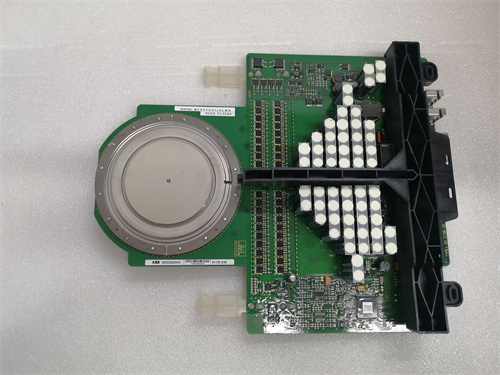

5SHY4045L0006

Description

‌Parameters‌:

–‌Maximum Rated Current‌: 4000 A1, suitable for high-power applications.
–‌Maximum Rated Voltage‌: 4500 V1, ensuring compatibility with high-voltage systems.
–‌Cooling Method‌: Water-cooled1, providing effective heat dissipation for sustained performance.
‌Specifications‌:

–‌Module Type‌: IGCT (Insulated Gate Bipolar Transistor)12, a high-performance power semiconductor device.
–‌Operating Frequency‌: Maximum rated switching frequency of 1600 Hz1, allowing for precise control.
‌Dimensions & Weight‌:

–‌Dimensions‌: 178mm x 108.5mm x 68mm (L x W x H)3, a compact design for efficient space utilization.
–‌Weight‌: 1.25kg3, lightweight yet sturdy for industrial environments.

‌Series‌:

• Part of ABB’s 5SHY series, a line of advanced industrial control and power electronics components1.
  ‌Features‌:

–‌High Power Handling‌: Capable of handling large currents and voltages, making it ideal for demanding industrial applications1.
–‌Modular Design‌: Facilitates easy integration and maintenance within industrial control systems4.
–‌Versatile Control Modes‌: Supports multiple operation modes, including network, analog signal, pulse/direction, and independent operation2.
–‌Communication Capabilities‌: Connects with PC, touch screen, PLC, and other upper computers via RS232/RS485/CAN bus2.
–‌Protection Functions‌: Incorporates safety features such as temperature protection, overcurrent, overvoltage, and undervoltage protection2.
‌Applications & Functions‌:

–‌Drive Systems‌: Primarily used in driving DC brushed servo motors and applicable in AC motor drive systems for adjustable speed and control2.
–‌Power Conversion‌: Converts AC power to DC for high-voltage direct current (HVDC) transmission systems2.
–‌Industrial Control‌: Enhances the stability and control of electrical grids, contributing to reliable power distribution2.
–‌Automation Solutions‌: Integrated into ABB robots and FlexTrack systems, offering precise positioning and control in automated production lines
