Description
Parameters and specifications

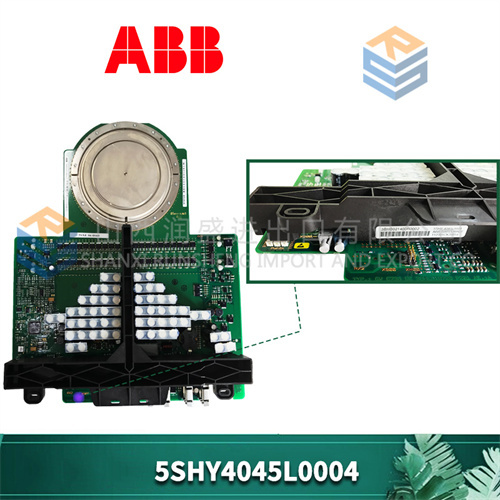

Model: 5SHY4045L0004
Rated voltage:
Depending on the source, there are two different rated voltage ranges:
380V-400V
Maximum rated voltage 4500V
Please note that these two voltage ratings may correspond to different application scenarios or product families.
Rated current:
45A
Another way of saying this is the maximum rated current of 4000A, which may also be suitable for different application scenarios or product configurations.
Short-time withstand current: 1.5kA
Maximum rated on-off loss: 18000W
Maximum rated switching frequency: 1600Hz
Maximum rated junction temperature: 175°C
Minimum rated gate pulse current: 10mA
Minimum rated gate pulse voltage: 15V
Number of tubes: 1
Cooling method: water cooling
Size and weight
Dimensions: 450x250x300mm
trait
A variety of protection functions: including overload, short circuit, undervoltage, etc., to ensure stable operation under various working conditions.
High quality and reliability: As an ABB product, 5SHY4045L0004 inherits ABB’s consistent high quality standards and has a high reliability after strict quality control and testing.
Durability: Mechanical life up to 1,000,000 times.
Communication and networking functions: Support data exchange and control with other smart devices.
Scalability: With simple scalability, such as 30 fail-safe inputs or outputs via EtherCAT
