Description
Specifications and dimensions :
Length : 300 mm
Width : 250 mm
Height : 150 mm
Mounting hole distance : 250 mm
Other specifications : Rated voltage 6500V, rated current 1000A
Weight :
Weight : 15 kg
function :
High performance modules designed for high voltage direct current (HVDC) applications
It is widely used in power system, industrial control, process control and monitoring, factory automation and other fields
parameter : (part)
Switching loss : 5.0J
conduction loss : 2.5V
Switching frequency : 2kHz
node temperature : 175°C
system capability : strong, with high performance and high reliability, support a variety of protection functions and communication interfaces
summary :

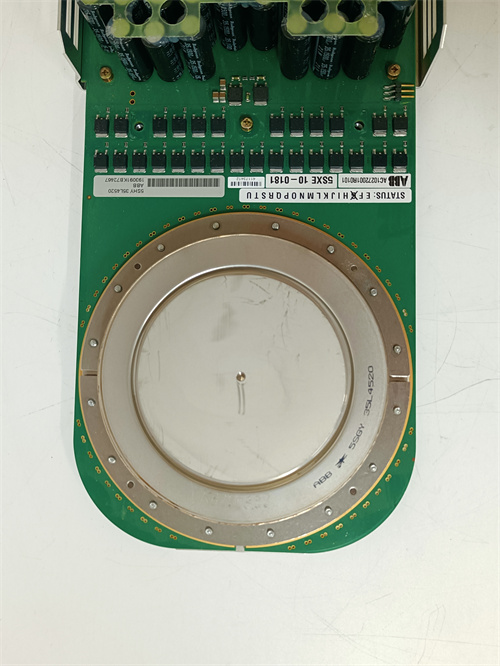

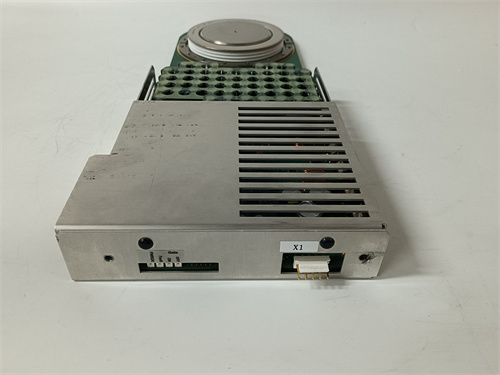

5SHY35L4520 5SXE10-0181 AC10272001R0101 is a high performance module manufactured by ABB in Switzerland and designed for high voltage direct current (HVDC) applications. It has excellent efficiency, high power density, reliability and long service life, and is widely used in power systems, industrial control, process control and monitoring, factory automation and other fields. The module supports a variety of protection functions and communication interfaces, enabling rapid fault detection and protection actions, as well as communication and integration with other devices. Its specifications and parameters have been carefully designed to meet the needs of a wide range of HVDC applications.
