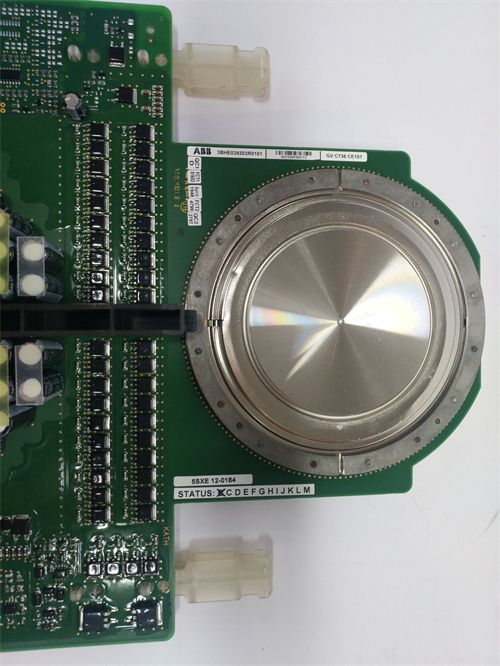

5SHY3545L0014 3BHB013085R0001

Description

argument
Maximum rated current: 3500A
Maximum rated voltage: 4500 V
Maximum rated on-off loss: 14000 W
Maximum rated switching frequency: 1600 Hz
Maximum rated junction temperature: 175°C
Minimum rated gate pulse current: 10 mA
Minimum rated gate pulse voltage: 15 V
Number of tubes: 1
Cooling method: water cooling
specification
Module package: TO-247AB
Product line: ABB’s 5SHY IGCT product line
Size and weight
The exact size and weight are not given directly in the search results. Typically, the size and weight of such industrial electronics modules will vary depending on their specific design and package.
series
5SHY3545L0014 3BHB013085R0001 belongs to ABB’s 5SHY family of IGCT products.
trait
Asymmetric structure design: improve the switching efficiency
Advanced chip manufacturing processes: improved reliability and durability
Perfect protection function: improved security
Comply with RoHS directive requirements: environmental protection and safety
High current, high voltage and fast switching speed: Suitable for a wide range of high power applications
Low loss and high efficiency: helps improve system performance
