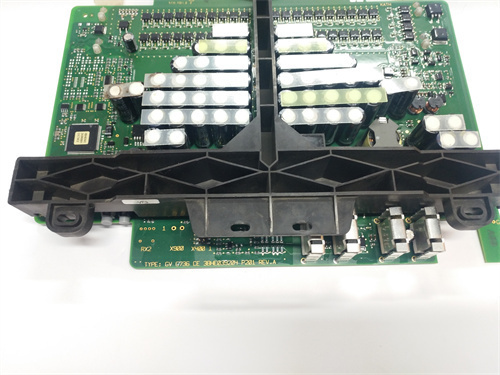

5SHY3545L0014

Description

‌Parameters & Specifications‌:

–‌Model‌: 5SHY3545L0014
–‌Input Voltage Range‌: 85~264VAC1
–‌Input Current‌: 500mA1
–‌Output Voltage‌: 24VDC1
–‌Output Power‌: 360W1
–‌Maximum Output Current‌: 15A1
‌Dimensions & Weight‌:

–‌Size‌: 115mm x 48mm x 150mm1
–‌Weight‌: Approximately 1.2kg1
‌Series‌:

• Part of ABB’s PLC controller series, designed for industrial automation applications
•
  ‌Features‌:

–‌High Performance‌: Equipped with a high-performance processor, capable of executing complex control logic rapidly2.
–‌Flexibility & Scalability‌: Supports multiple input/output (I/O) modules and communication protocols, allowing for flexible adaptation to various industrial automation applications. Additionally, it supports expansion modules for increased functionality2.
–‌Easy Programming & Configuration‌: Compatible with ABB’s dedicated programming software, such as ABB ACS 800M, facilitating intuitive control logic programming and system parameter adjustments2.
–‌Seamless Communication & Integration‌: Supports various communication protocols (e.g., EtherNet/IP, Profinet, Modbus), enabling seamless integration and data exchange with other industrial devices, sensors, and actuators2.
–‌Reliability & Stability‌: Undergoes rigorous quality and reliability testing, ensuring stable operation in harsh industrial environments. Equipped with advanced fault diagnosis and self-recovery functions2.
‌Functions‌:

–‌Control Logic Execution‌: Executes control logic stored in memory to automate industrial processes2.
–‌Pulse Control‌: Functions as a control pulse card module, capable of generating and controlling pulse signals for triggering and synchronizing external devices3.
–‌Data Acquisition & Processing‌: Equipped with high-resolution clock sources, enabling synchronous data acquisition and processing3.
–‌Multi-Channel Design‌: Features multiple independent pulse output channels, allowing for simultaneous control of multiple devices or execution of multiple tasks
