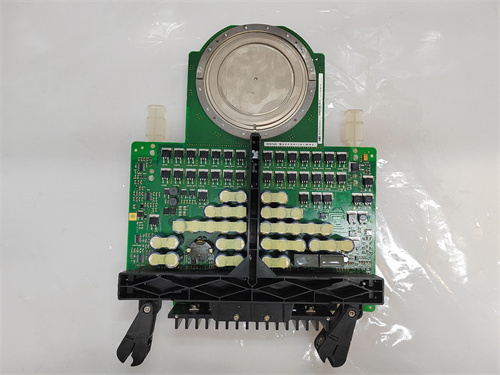

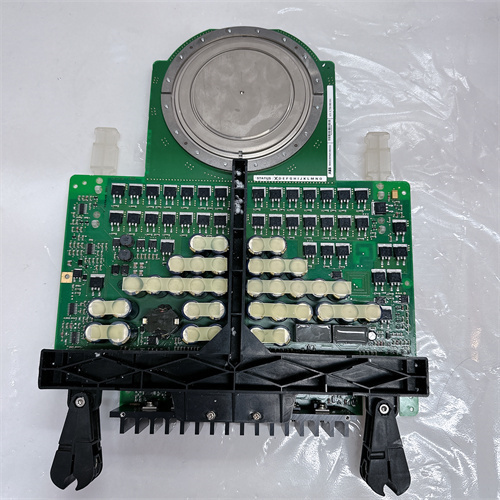

5SHY3545L0010

Description

{“deviceId”:”IOS_5DA664FB-00B3-4ABA-8CCA-3927A70F6A55″,”openFrom”:”m2u_production”,”source”:”m2u”,”userId”:”1177870989″,”data”:{“beautyMode”:1,”mv”:[“10739700393201441532”]}}

Parameters and specifications
Voltage: Usually 24V, but there is also information that its voltage range is DC 12~36V, the typical value is DC 24V.
Current: Some information indicates a current range of 100-400A, but this information may not be consistent with the actual product, as the current range is usually not so wide for such devices.
Power consumption: less than 4W.
Communication rate: Supports a variety of communication rates, including 9.6Kbps, 19.2 Kbps, 45.45Kbps, 93.75Kbps, 187.5Kbps, 500Kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps.
Lightning protection and surge protection: with 4000V lightning protection and 600W surge protection.
Overcurrent protection: 1.5A overcurrent protection.
Power supply: Dual power supply redundant input, with reverse protection function, industrial terminal interface.
Bus data interface: 9-pin Sub_D jack connector, pin definition conforms to the Profibus DP protocol specification.
Relay alarm output: bus data interface fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface.
Size and weight
Size: According to the latest search results, it measures 130mm x 130mm x 80mm (5.12 inches x 5.12 inches x 3.15 inches).
Weight: About 5.0 kg (11.0 lb), but there is also information that it weighs 2KG.
trait
High torque density: for demanding applications.
Fast response time: Suitable for applications requiring fast motion control.
High accuracy: Ensures precise motion control.
Multiple optional functions: Meet various application requirements.
Programmability: Allows users to customize the configuration and logic to meet the needs of a specific application.
Fault detection and diagnosis: detects and reports problems in time to improve system reliability.
Current and voltage monitoring functions: Ensure accurate measurement and regulation of parameters during control.
