Description
I. Specifications and parameters
Rated voltage : 3300V AC
Rated current : 2600A
Peak forward current : 4000A
conducting voltage drop : 2.5V
gate trigger current : 0.5A
Operating temperature : -40°C to +85°C
Storage temperature : -40°C to +125°C
Protection level : IP65
Weight and dimensions
Weight : 22 kg
Dimensions : 385 mm x 250 mm x 120 mm
. Function and application

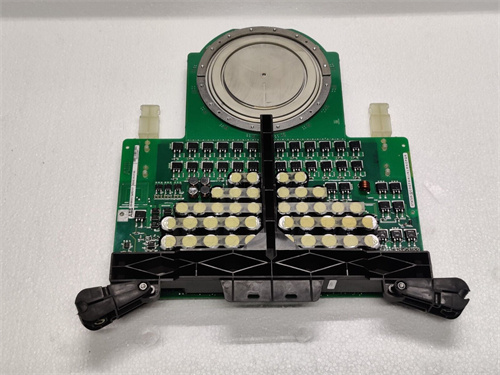

main function : 5SHX2645L0002 is an ABB integrated gate commutator thyristor (IGCT) module, specially designed for high performance switching and control of AC power supply, to achieve the controlled switching of high voltage AC current
Application field :
Industrial automation , such as speed control of pumps, fans and conveyor belts in AC drives
Renewable energy : Electricity conversion and control in wind turbines, solar inverters and battery storage systems
Grid infrastructure : Power transmission and distribution, reactive power compensation and voltage regulation
Industrial power supply : high power DC power supply for industrial processes and equipment
Electric vehicles : Electric power conversion and control in electric vehicle traction systems
