Description
Basic specifications

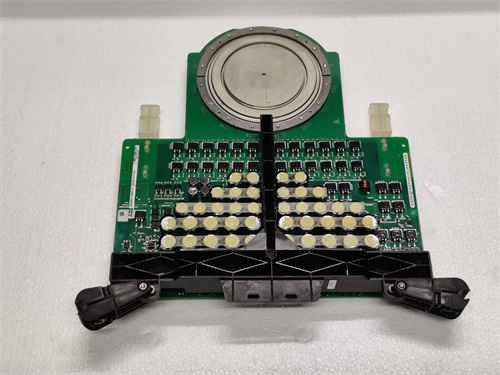

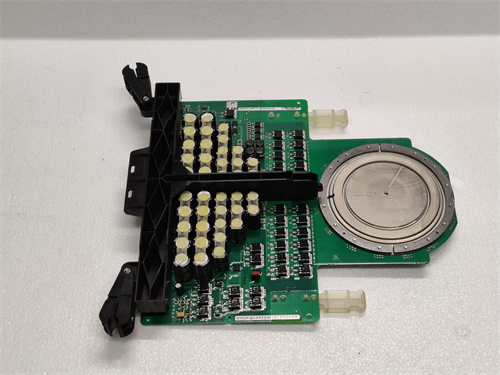

Product name : 5SHX2645L0002
Type : Integrated Gate commutated thyristor (IGCT) module/thyristor switch module
series : ABB SHX series /800M series
Weight and dimensions
Weight : 22 kg
Dimensions : 385 mm x 250 mm x 120 mm
Main parameters
Rated voltage : 3300V AC
Rated current : 2600A
Peak forward current : 4000A
conducting voltage drop : 2.5V
gate trigger current : 0.5A
Operating temperature : -40°C to +85°C
Function and application
function : Control the flow of AC current in high-power applications to achieve controlled switching of high-voltage AC current.
application : widely used in industrial automation, power conversion fields, such as AC drives, renewable energy systems, power grid infrastructure, industrial power supplies and electric vehicles.
Other features
High performance : provides fast switching speed, high efficiency and precise control.
reliability : Rugged design ensures long term operation in harsh industrial environments.
Protection level : IP65 to protect against dust, water and other contaminants.
The 5SHX2645L0002 is a high-performance product from ABB that is suitable for a variety of demanding power conversion tasks and has a wide range of applications.
