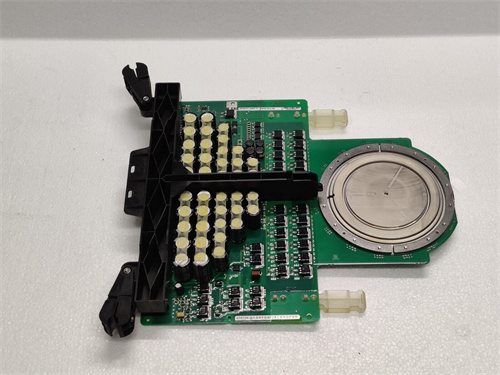

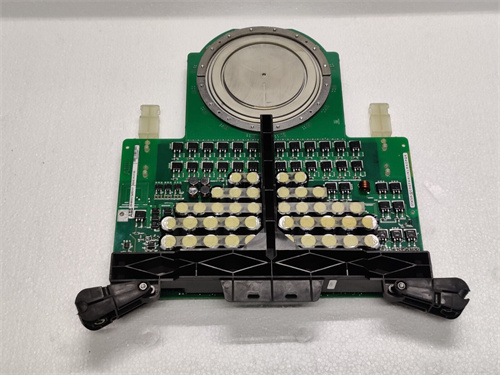

5SHX2645L0002

Description

‌Parameters & Specifications‌:

–‌Voltage Compatibility‌: Suitable for 415/440V, 50Hz low-voltage grids1.
–‌Current Capability‌: Capable of handling currents ranging from 100A to 400A2.
–‌Power Rating‌: Used with single or multiple components of up to 50kVAr (25kVAr and 10kVAr)1.
–‌Switching Speed‌: Offers high-speed switching at zero differential voltage1.
–‌Communication‌: Supports standard communication rates and protocols3.
‌Dimensions & Weight‌:

–‌Dimensions‌: Exact dimensions are not specified, but it is a compact module designed for industrial use.
–‌Weight‌: Approximately 2KG (based on some listings)2, though weights may vary depending on packaging and accessories.

‌Series‌:

• Belongs to the 800M series of thyristor switch modules1.
  ‌Features‌:

–‌Monitoring Capabilities‌: Monitors power supply voltage, input trigger, and thermal failure1.
–‌Cooling Options‌: Equipped with a self-cooling unit and an optional forced cooling fan1.
–‌Protection Mechanisms‌: Provides lightning, overcurrent, and surge protection3.
–‌Compatibility‌: Compatible with multiple brand ring network technologies3.
–‌IP Rating‌: Typically IP20 or IP30, depending on configuration, providing a basic level of environmental protection13.
–‌EMC Compliance‌: Complies with EMC testing standards, ensuring electromagnetic compatibility3.
‌Functions & Applications‌:

–‌Reactive Power Compensation‌: Widely used in reactive power compensation in power systems, including industrial grids, commercial buildings, data centers, wind farms, and photovoltaic power plants1.
–‌High Voltage and Power Control‌: Can be used as a high voltage excitation controller for large synchronous generators, ensuring stable operation under high voltage and high power conditions1.
–‌Industrial Automation‌: Suitable for a variety of industrial automation applications, including CNC machinery, metallurgy, petrochemicals, and more
