Description
Product 1:
Parameters and specifications:
Model: 5SHX1445H0001
Voltage level: 230 V
Rated current: 16 A
Protection level: IP20
Case material: plastic
Mounting method: DIN rail mounting
Operating temperature range: -25℃ to +55℃
Storage temperature range: -40℃ to +80℃
Maximum relative humidity: 95%
Acceptable altitude: 2000 m
Size and weight:
Weight: 0.5kg
Series: May belong to some kind of ABB short circuit protector series, but the specific series name is not explicitly given in the search results.
Features:
Power systems for residential and commercial buildings to provide overload and short circuit protection
Short-circuit protection based on current detection and control
High quality plastic housing with excellent protection level and high temperature resistance
Function: Provide overload and short circuit protection in the power system of residential and commercial buildings to ensure the safe and stable operation of the power system.
Product 2:
Parameters and specifications:
Model: 5SHX1445H0001
Rated voltage: 3300V AC
Rated current: 1400A
Peak forward current: 2200A
On-voltage drop: 2.5V
Gate trigger current: 0.5A
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +125°C
Size and weight:
Dimensions: 285mm x 220mm x 100mm
Weight: 8.5 kg

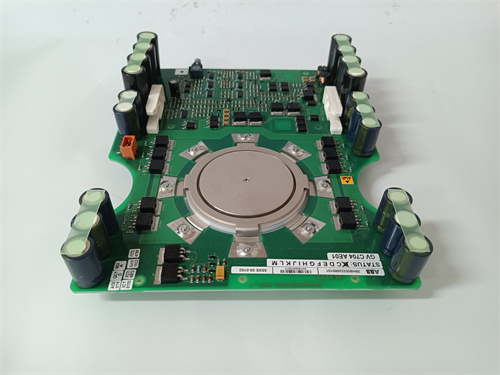

Series: SHX series IGCT (Integrated Gate commutator thyristor) modules belonging to ABB.
Features:
High voltage and high current handling capability for applications requiring high power control
IGCT element is adopted to realize direct high voltage frequency conversion
It may contain voltage balancing and buffer circuits, but the technology is complex and the cost is high
Function: It is used to achieve power conversion and control functions in power systems requiring high voltage and high current processing.
