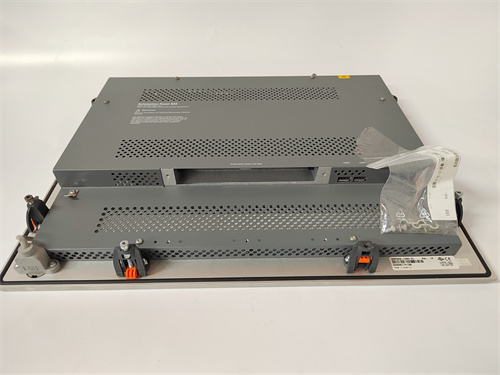

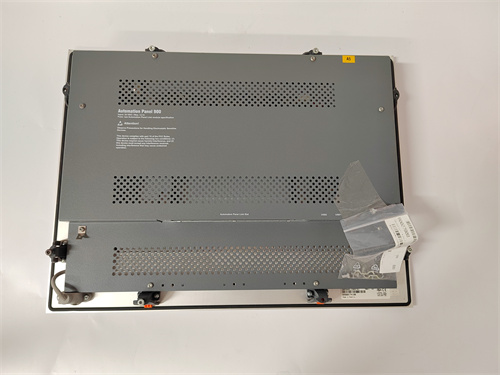

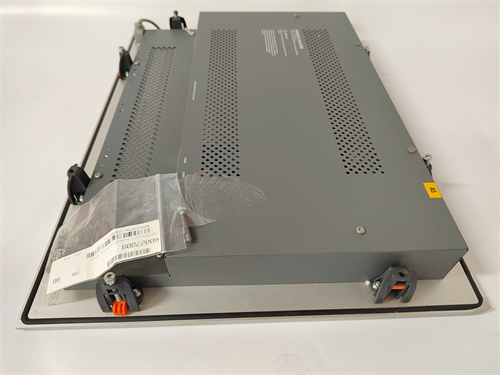

5AP920.1505-01

Description

‌Parameters and Specifications‌:

‌Model‌: 5AP920.1505-01
‌Brand‌: B&R
‌Display Type‌: Color TFT
‌Resolution‌: 1024 x 768 pixels (some sources mention 640*480, but 1024 x 768 is more commonly listed)‌
‌Operating Voltage‌: 24 VDC (also compatible with 120Vac)‌
‌Operating Temperature‌: -25 to 60°C (though one source mentions 24°C, this is likely a typo or specific condition)‌
‌Dimensions and Weight‌:

‌Dimensions‌: 435mm x 330mm x 54mm (another source mentions 32.3cm x 26cm x 6.55cm, but the former is more detailed and likely in mm)‌
‌Weight‌: 5100 grams or approximately 5.1 kg
‌Series‌:

Belongs to the B&R automation panel series, specifically designed for industrial automation and control systems.
‌Features‌:

‌Color Display‌: Equipped with a 15-inch XGA color TFT display for clear and vivid visualization.
‌Touchscreen Interface‌: Features a resistive touchscreen for intuitive and responsive operation.
‌Compact Design‌: With a small installation depth, it is suitable for space-constrained applications.
‌Robust Construction‌: IP65-rated protection ensures resistance to dust and water, suitable for harsh industrial environments.
‌Fanless Operation‌: Designed for fanless operation, reducing noise and maintenance requirements.
‌Multiple USB Ports‌: Equipped with 3 USB 2.0 ports for easy connectivity to peripheral devices.
‌UL Certification‌: Certified by UL, ensuring safety and compliance with industry standards.
‌Role and Application‌:

The B&R 5AP920.1505-01 serves as a human-machine interface (HMI) in industrial automation systems.
It is used to display real-time data, monitor system status, and allow operators to control and configure system parameters through the touchscreen interface.
Suitable for a wide range of industries, including manufacturing, process control, and automation, providing a reliable and user-friendly solution for monitoring and controlling industrial processes.
