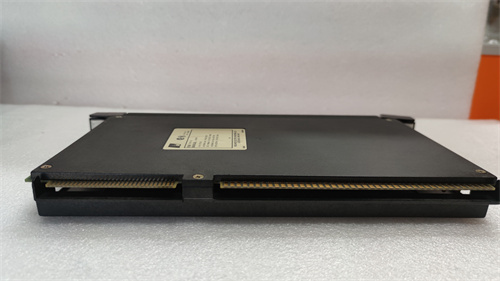

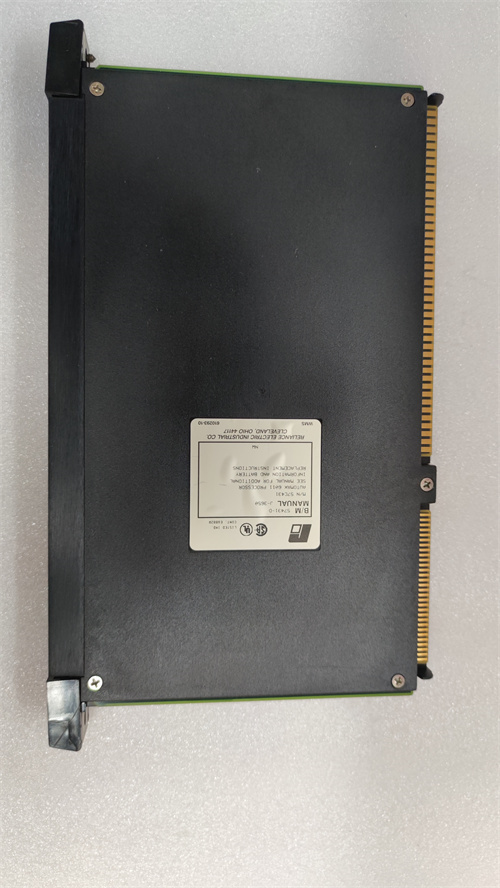

57C431

Description

Step 5: Characteristics
Insertability: Inserts into the backplane of the AutoMax rack.
Communication capability: Using R-Net allows a computer or other device to communicate with the AutoMate controller via a serial gateway and computer bus card, allowing full speed data transmission of 800KBaud.
Commonality: All AutoMate controllers use a common software language, and features in AutoMate 40E are shared in a subset of all lower AutoMate processors.
Step 6: Function

3. Size and weight
Size: Length 350mm, width 190mm, height 40mm.
Weight: 1.16 kg.
4. Series
​
The 57C431 is one of a series of AutoMate controller modules from RELIANCE ELECTRIC.

1. Parameters
Processor speed: 26MHz
Current: 56mA
Operating system: An Ethernet operating system is required to use Ethernet features, and the operating system can be loaded into the local rack via a personal computer with AutoMax execution software installed. The operating system is available in three versions: 6010/6011 standard, 6010/6011 Ethernet, and 7010 standard.
Communication capability: All AutoMate processors are capable of communicating over R-Net, connecting point-to-point industrial networks or nodes of up to 32 sites together on a single coaxial cable.
2. Specifications
Installation requirements: The 57C431 processor module must be installed in a rack.
Function support: Support the control of automation equipment such as motors, generators, drive systems, programmable logic controllers, power electronics and robotics products in automation systems.
