Description
Parameters and specifications
Operating range: -40°F to +140°F (manufacturer’s temperature range)
Input range: 110 to 250 VDC (operating voltage range)
Control power: 24-60VDC
Rated voltage: 120 V AC (rated voltage under certain conditions)
Frequency: 47-63 Hz
Power consumption: 6 W (power consumption under certain conditions)
Size and weight
Size: Depending on the search results, there are different size descriptions. One description is that the package size is 12 inches wide, 11 inches high, and 10 inches deep; Another description is that the size is 23cm (this may refer to the length of a certain dimension, but the overall size information is not complete). Another description mentions a size of 123,232, but the unit is unclear (it could be centimeters or something else).
Weight: Depending on the search results, there are different weight descriptions. One description is that the package weighed about 17 pounds; Another description says it weighs 0.2kg, and another says it weighs 0.28 kg.
series

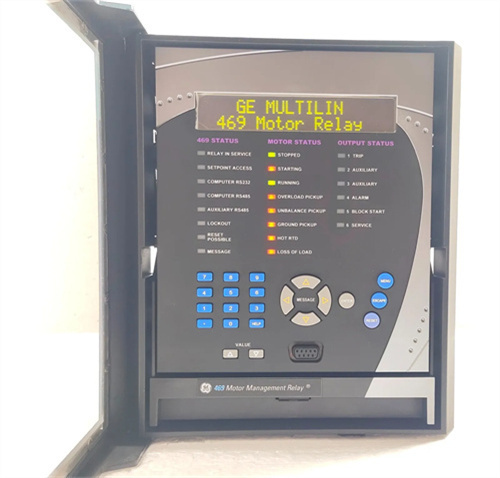

Series: Series 469, manufactured by GE Multilin
trait
Protection functions: including over-torque protection, RTD protection (12 RTD inputs, highly programmable), ground fault protection, etc
Simulation function: The effectiveness of the relay can be tested and how it works with the current set point Settings, the input values are simulated; Fault conditions and pre-trip conditions can also be simulated
Configurability: The setpoint system provides a large number of customizable Settings, including assigning inputs, adjusting time intervals, viewing or clearing data, and more
Communication function: Ethernet connection is optional
Durability: The relay itself is protected by a DEMO metal carrying case that resists corrosion, dust and heat
