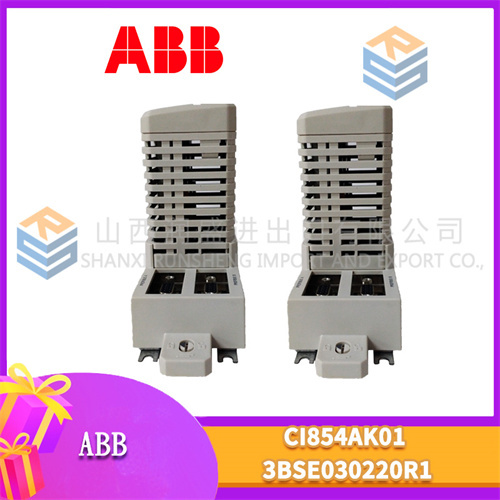

3BSE030220R1 CI854AK01

Description

Parameter Specifications

1. Power Supply: The 3BSE030220R1 CI854AK01 typically operates on a 24V DC power supply. The power consumption is relatively low, around 5 – 7W, which helps in energy – efficient operation within industrial setups.
2. Communication Interface: It is equipped with high – speed communication interfaces. For instance, it supports Ethernet communication with a data transfer rate of up to 100Mbps. It also adheres to industrial – standard communication protocols such as Profibus DP, enabling seamless integration with other devices in an industrial network.
3. I/O Channels: This module features a certain number of input/output channels. It may have 8 digital input channels to receive signals from sensors like limit switches or proximity sensors, and 8 digital output channels to control actuators such as solenoid valves or relays.
4. Operating Temperature Range: Designed to function in a wide temperature range, from – 20°C to 60°C. This makes it suitable for use in various industrial environments, including those with extreme temperature conditions.

Applications

1. Industrial Automation: In manufacturing plants, it can be used to control and monitor production lines. For example, it can manage the movement of conveyor belts, control robotic arms, and monitor the status of manufacturing equipment.
2. Process Control: In chemical and petrochemical industries, it can be employed to regulate chemical processes, monitor pressure, temperature, and flow rate sensors, and control valves to ensure safe and efficient production.
3. Power Distribution: In power substations, it can be used to monitor and control the distribution of electrical power, detect faults in the power grid, and control circuit breakers.

Weight and Dimensions

1. Weight: Approximately 1 kg, which is relatively light and easy to handle during installation and maintenance.
2. Dimensions: It has a compact design, with dimensions of about 200mm (length) x 150mm (width) x 50mm (height). This allows it to be easily installed in standard control cabinets.

Features

1. High – speed Communication: The fast Ethernet and Profibus DP communication capabilities enable rapid data transfer between the module and other devices in the network, ensuring real – time control and monitoring.
2. Modular Design: It has a modular design, which means it can be easily integrated into existing industrial control systems. Additional modules can be added or removed as per the specific requirements of the application.
3. Diagnostic Functions: It is equipped with built – in diagnostic functions that can detect faults in the module itself, input/output channels, and communication interfaces. This helps in quick troubleshooting and reduces downtime.

Stability and Reliability

1. Robust Construction: Built with high – quality components and a sturdy enclosure, it can withstand mechanical vibrations, shocks, and electromagnetic interference commonly found in industrial environments.
2. Redundancy Options: Some configurations may support redundancy in power supply and communication, ensuring continuous operation even in the event of a single – point failure.
3. Long – term Testing: Through extensive long – term testing, it has been proven to have a stable performance over a long service life, with a low failure rate.

Practical Case
