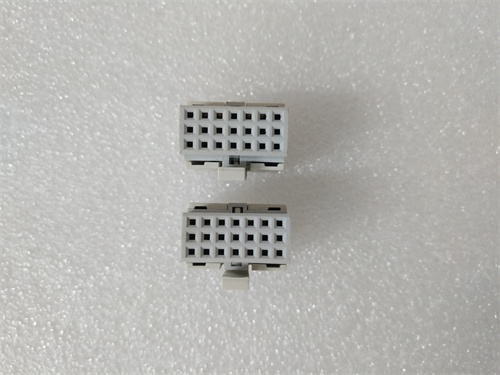

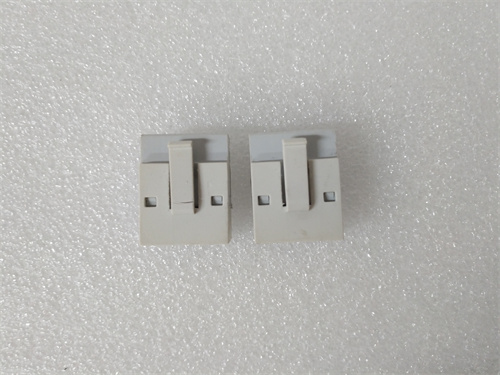

3BSE008538R1

Description

‌Parameters & Specifications‌:

–‌Model‌: 3BSE008538R1
–‌Manufacturer‌: ABB
–‌Type‌: Bus Terminator
–‌Compatibility‌: Suitable for use in various bus systems, including CAN, LIN, and others1
–‌Operating Voltage‌: Depending on the context, the device may operate at 24VDC or have a wider input voltage range2
‌Dimensions & Weight‌:

–‌Dimensions‌: There are varying reports on the dimensions. One source mentions 115mm x 48mm x 150mm2, while another states 2.5cm x 2cm x 1.7cm3. These differences could be due to different packaging or variants.
–‌Weight‌: Similarly, weights vary from approximately 1.2kg2 to 0.34kg3. The actual weight may depend on packaging and accessories.

‌Series‌:

• Part of ABB’s industrial automation and control components series.
  ‌Features‌:

–‌Bus Termination‌: Effectively terminates bus communication lines, preventing signal reflection and interference41.
–‌Signal Quality Enhancement‌: Improves signal quality on the bus, ensuring reliable data transmission4.
–‌Modularity‌: Designed with modularity in mind, facilitating easy installation and maintenance4.
–‌Protocol Support‌: Supports various communication protocols, including Fieldbus and other industrial bus protocols4.
–‌High Reliability‌: Known for ABB’s high standards of reliability and stability in industrial automation4.
‌Functions‌:

–‌Communication Integrity‌: Ensures the integrity of bus communication by preventing signal reflections and interference41.
–‌Data Transmission‌: Facilitates reliable data transmission between devices on the bus4.
–‌Industrial Automation‌: Widely used in industrial automation systems, including control systems, machinery, and equipment communication
