Description
Parameters and Specifications:

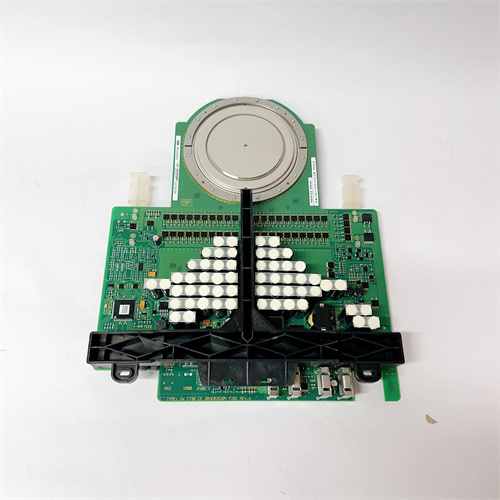

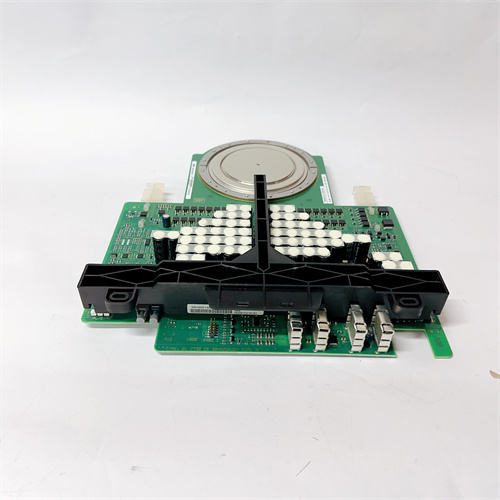

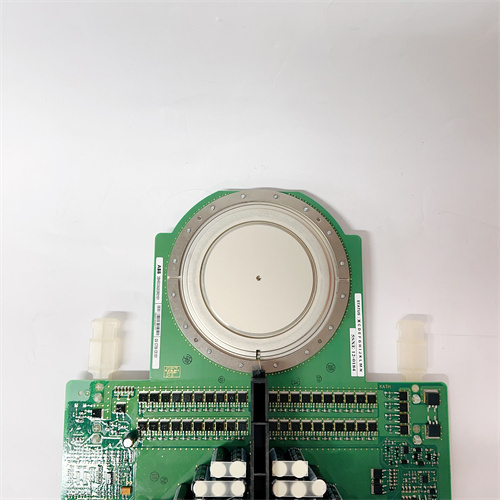

Model: 3BHB021400R0002
Brand: ABB
Series: IGCT Module
Power Supply: 115-240V
Communication Protocol: Supported
Interface: Terminal Interface
High Gate Rear Current: Typically 4-8A for 3-kA devices, especially at low temperatures
Dimensions and Weight:
Weight: 2KG
Specific dimensions are not provided in the search results.
Features:
High Gate Rear Current: Essential for low-temperature operations
Reduced Storage Time: By approximately 20%
Decreased Gate Charge: Required for I_GQM by a factor of 4
MOSFET Loss Reduction: Through the use of transparent anode technology
Robustness and Compactness: Achieved through integrated gate driver and cooling system
Pressure Contact System: Ensures reliable electrical and thermal contact
Anti-Parallel Diode: Directly proportional to diode area
Industrial-Grade Design: With EMC testing certification
Redundant Power Supply: DC9-36V with DC1500V isolation and reverse connection protection
Protection Against Surge and Lightning: 4000V lightning and 1.5A overcurrent protection
Flexible Network Configuration: Supports multiple network topologies for redundancy and reliability
Applications:
High-Voltage DC Transmission: Provides powerful technical support
Renewable Energy Applications: Ensures efficient and safe operation
Industrial Power Conversion: Used in industrial power converters and drives
Motor Control: Provides precise and stable current control
Wind Turbines and Traction Converters: Offers reliable power control and regulation
