Description
Parameters and specifications:
Technical parameters:
Input signal: thermocouple, thermal resistance, resistance, voltage, current and other types
PID control output: voltage, current, relay contact switch, SSR driver, etc
Communication transmission output: 4~20mA, 1~5V, Rs485 communication, etc
Accuracy: ±0.2%F.S±1 word, automatically compensate for temperature drift and time drift
Current output load capacity: 0~600Ω or 0~250Ω
Measurement control cycle: 0.5s
Distribution output: DC24±1V(25mA)
Isolation voltage: input-output 1500V, input-power supply, output-power supply 1000V
Working environment: Temperature 0~50℃, relative humidity ≤80%RH
Power supply: Switching power supply 100-240VAC (50HZ/60HZ), 24VDC/AC±2V
Size and weight:
Size: 100×112×45(22.5)mm (mounting size)
Functions:

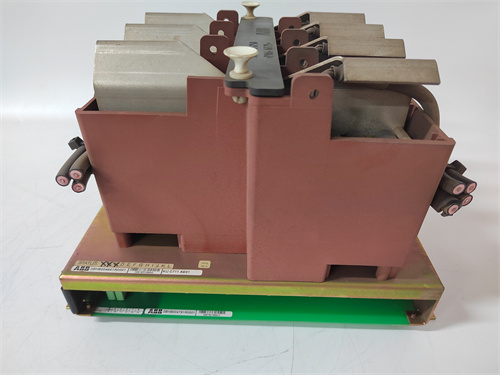

ABB 3BHB004661R0001 KUC711AE01 is a high voltage inverter control unit for excitation systems
It can receive signals from sensors and inputs, and output control signals according to control algorithms, thus controlling the operation of the excitation system
In a power system, the excitation system is used to control the magnetic field current of a generator or other motor equipment to ensure that the output voltage and frequency of the generator are stable within a controllable range
