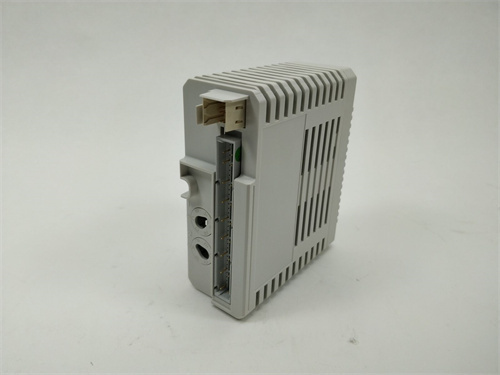

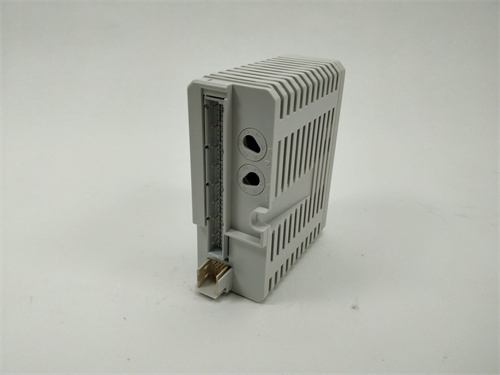

3BDH000741R1

Description

‌ Specifications ‌ :

The 3BDH000741R1 is a high-precision voltage measurement module commonly used on PXIe platforms.
The module supports multi-channel voltage measurement, and each channel has its own measurement function, which can realize multi-channel parallel measurement.
The adaptive motor power is 225KW.

‌ Weight ‌ :

Different sources give different weight information. One says that the weight is 1kg, another says that the weight is 0.69kg, and another says that the weight is 0.5kg.

‌ function ‌ :

The 3BDH000741R1 module provides high-precision voltage measurement and can be used to measure multi-channel voltage signals. It is characterized by high resolution and low noise, enabling accurate and reliable voltage measurement.
The module is widely used in the field of test and measurement, including precision measurement, sensor measurement, voltage monitoring, etc. It is suitable for applications requiring high-precision voltage measurement and multi-channel measurement.

‌ parameter ‌ :

The operating voltage is 24Vdc/120Vac.
The power is 5W.
The temperature ranges from -40℃ to 85℃.
The protection level is IP65, which can cope with various harsh environments.
The height is 6mm.

‌ Size ‌ :

One saying is that the package size is 11010620mm, but this is not the actual size of the module.
Another way of saying it is 10cm x 10cm x 10cm
