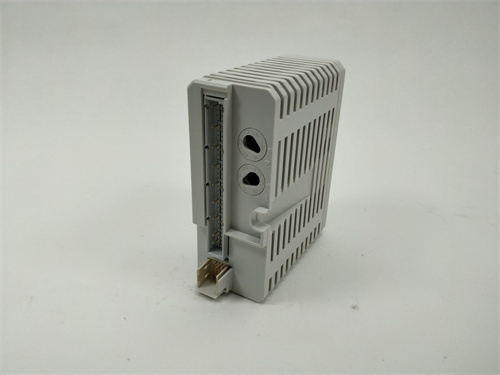

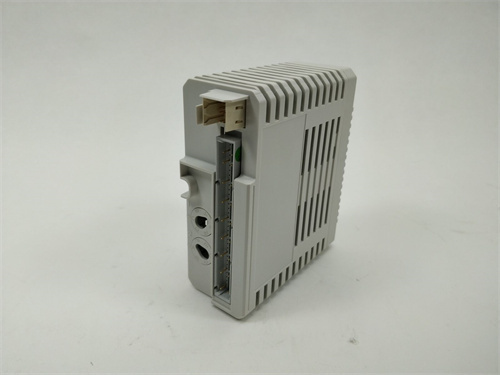

3BDH000741R1

Description

‌ parameter ‌ :

Operating voltage: Usually 24V DC, but an input voltage range of 12-48V DC may also be supported.
Power: 5W1.
Output voltage: In some cases, the output voltage is 5V DC2.
Output current: Maximum 10A2.
Efficiency: greater than 90%2.
‌ Specifications ‌ :

Using advanced control technology and materials, with high reliability and stability 1.
Supports Modbus protocol 1.
Suitable for industrial automation, such as factory automation control system, robot control, etc. 1.
‌ Size ‌ :

Sizes may vary depending on the source. One version is 10cm x 10cm x 10cm1, the other is 170mm x 105mm x 32mm2.
‌ Weight ‌ :

0.5kg1, but some say it is about 120g2. This difference can be due to subtle differences in different batches or configurations.
‌ series ‌ :

The 3BDH000741R1 itself can be considered a series or model identifier, which may vary depending on the manufacturer or market positioning.
‌ Features ‌ :

With IP65 level of protection, it can cope with various harsh environments1.
High-precision voltage measurement for scenarios requiring multi-channel and high-resolution voltage measurement 3.
Appropriate software support may be available, such as NI-DAQmx drivers and the LabVIEW programming environment 3.
‌ function ‌ :

As an industrial control module, to provide users with high-quality control solutions and services1.
Widely used in the field of industrial automation, such as factory automation control system, robot control, etc.
It plays an important role in the field of test and measurement, especially precision measurement, sensor measurement, voltage monitoring and so on
