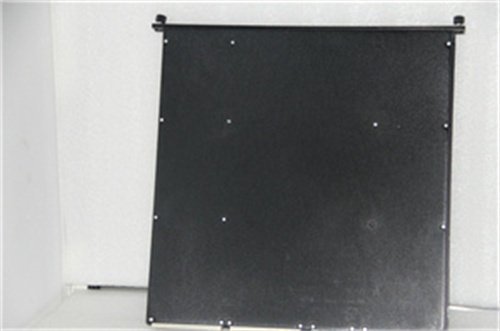

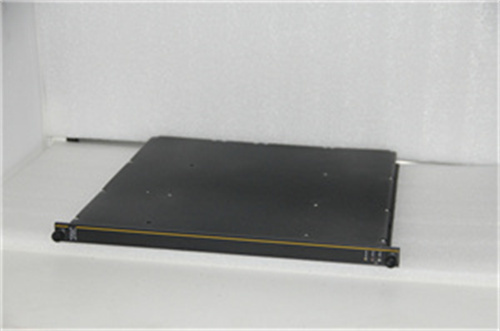

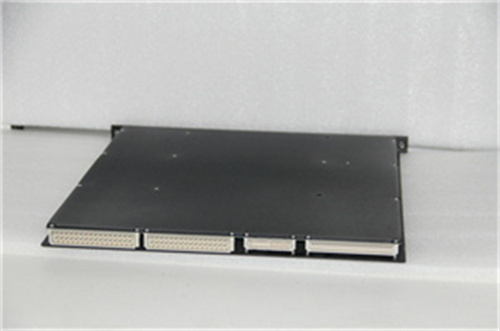

3700A

Description

‌Series‌:

• Keithley 3700A series
  ‌Parameters & Specifications‌:

*‌Maximum Switch Channels‌: Supports up to 576 dual-wire multiplexer channels1
*‌Measurement Functionality‌: Includes optional high-performance digital multimeter (DMM) with 7½ digits resolution and 13 measurement functions1
*‌Measurement Speed‌: Up to 14,100 readings per second1
*‌Connectivity‌: Ethernet, USB, and GPIB interfaces for remote PC control1
‌Dimensions & Weight‌:

*‌Dimensions‌: Full-rack, 2U high chassis

‌Features‌:

*‌High Density & Low Cost per Channel‌: Ideal for medium to high-channel count applications1
*‌Upgradeable Instrument-Grade Switches‌: Provides flexibility for evolving test needs1
*‌Optimized Multi-processor Architecture‌: For high-throughput scanning and pattern switching applications1
*‌LXI Class B Compatibility & IEEE 1588 Time Synchronization‌: Ensures interoperability and precision timing1
*‌Built-in TSP Automation‌: Provides system automation, productivity, and flexibility1
*‌TSP-Link‌: Enables easy system expansion and seamless connection with 2600 series digital source meters1
‌Functions‌:

*‌Switch and Measurement System‌: Tightly integrated solution for multifunction test systems, data acquisition, and measurement applications1
*‌Automated Testing‌: Supports automated testing of electronics and components through the use of Keithley’s Test Script Processor (TSPM) software1
*‌High-Accuracy Measurements‌: When equipped with the optional DMM, it performs highly accurate measurements1
*‌Remote Control & Monitoring‌: Enables remote configuration, maintenance, and basic application control via the embedded web interface
