369-HI-R-M-0-0-0-E

Description

Parameters and specifications

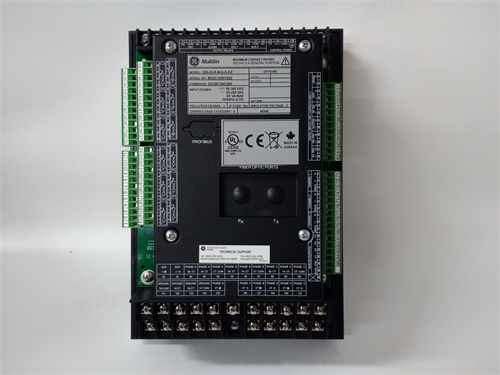

Model: 369-HI-R-M-0-0-0-E
Manufacturer: GE Multilin
Function: comprehensive relay protection and control
Application: motor protection, control and monitoring
Main functions:
Protect the motor from over current, under current, over voltage, under voltage, ground fault, short circuit and other electrical faults
Provide real-time monitoring of motor running status, including current, voltage, power, frequency and other parameters
Supports event recording and fault analysis
Users can customize the logical functions
Supports multiple communication protocols (such as Modbus, DNP3, etc.)
Equipped with LCD display and buttons for easy field operation and parameter setting
Modular design, support for expanded I/O modules
Size and weight
Dimensions: Width is about 11 cm, height is about 30 cm, length is about 21 cm
Weight:
The box weighs 10 pounds
Some models, such as the 369-HI-R-M-0-0-H-E, weigh about 10 pounds and are mounted in a demonstration metal carrying case
Other information indicates that it weighs 2.5kg (although note that this may differ from specific models or packaging forms)
Series and features
Series: Series 369 motor management relays from GE Multilin
Features:
Pre-trip alarm and over-torque correction function
The number of digital/switching inputs is 6 optically isolated
Non-condensing with maximum ambient humidity up to 95%
Contains an enhanced diagnostic function and an enhanced panel
With flame-retardant and corrosion-resistant housing
Programmable analog output with three possible output ranges of 0-1 mah, 0-20 mah and 4-20 mah
Electromagnetic relay, through the electromagnet suction and release contact to achieve circuit on-off control
Large contact capacity, long mechanical and electrical life
Standard DIN rail mounting
