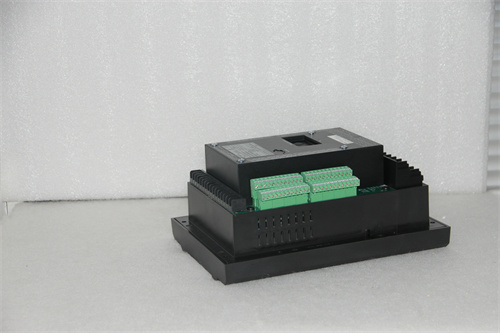

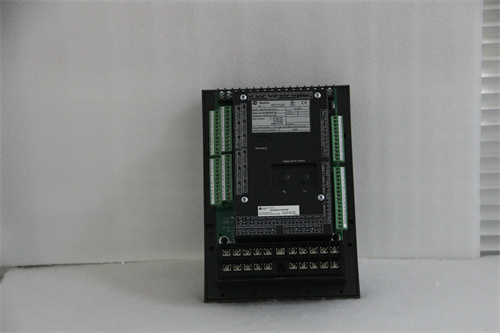

369-HI-R-M-0-0

Description

effect
Motor protection: Protect motors from damage and extend system life with technologies such as ground overcurrent protection and start suppression
Motor management: Measure the cooling rate of the motor, the time required to accelerate to full function and the motor surge current value to provide protection for three-phase motors
Data tracking and monitoring: Use metering to track key parameters such as voltage, watt, power factor, frequency and energy to improve system monitoring and management capabilities

specification
Function: Motor Protection series with optional metering function and 12 RTD inputs for protecting and controlling medium-sized motors and supporting motor equipment
Technical features: The use of ground overcurrent protection and start suppression technology to protect the motor and extend the life of the system
dimension
Approximate dimensions: 12 “high x 5” wide x 8 “long
weight
Approximate weight: 4.5 kg

argument
Control power input range: 110 to 250 volts DC, 100 to 240 volts AC
Frequency: 50/60 Hz
Type of insulation: Not explicitly mentioned, but may have high insulation properties according to general standards for General Electric products
Current input conversion true RMS value: 1.04 ms/ sample
Ground current input frequency: 20 to 100 Hz

series
Series name: 369 Multilin Series
trait
Versatility: Optional metering to track quantities such as voltage, watt, power factor, frequency and energy, and create a set point to enable the relevant protection functions
Highly configurable: A 369 motor setting autoconfigurator makes it easy to create and modify set values
Flexible customization: Support FlexCurve (TM) overload curve customization, can be customized to individual motors
Temperature monitoring: The optional 12-resistance temperature detector (RTD) is able to assess the actual temperature within the system and convert it to Fahrenheit

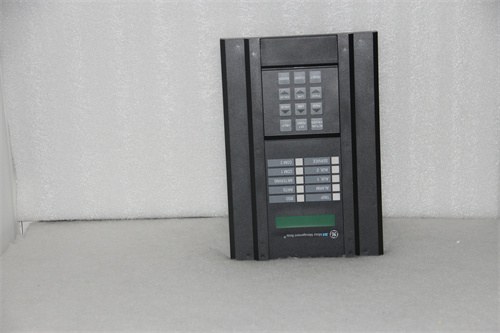

User-friendly: Equipped with a 40-character LCD and keyboard, or with the EnerVista 369 software program to modify Settings, providing a comprehensive display of system metrics and user interface
