Description
Specifications
Accuracy: +/- 0.1%
Voltage: 120 VAC
Frequency: 50/60 Hz
Total Harmonic Distortion: < 5%
Power Consumption: < 5 W
Operating Temperature: -40°C to +85°C
369-HI-0-M-0-0-0-E
369-HI-0-M-0-0-0-E
369-HI-0-M-0-0-0-E
Specifications and parameters

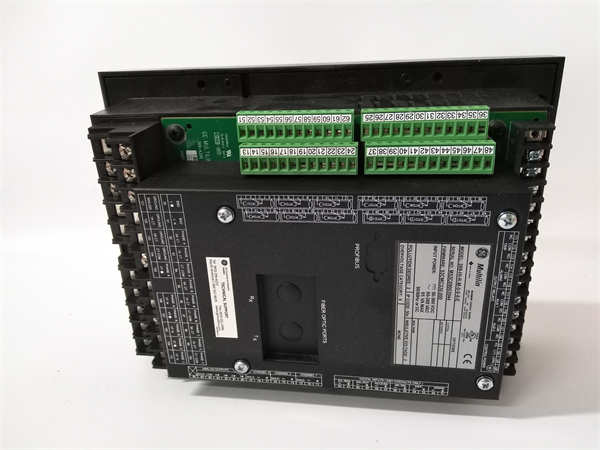

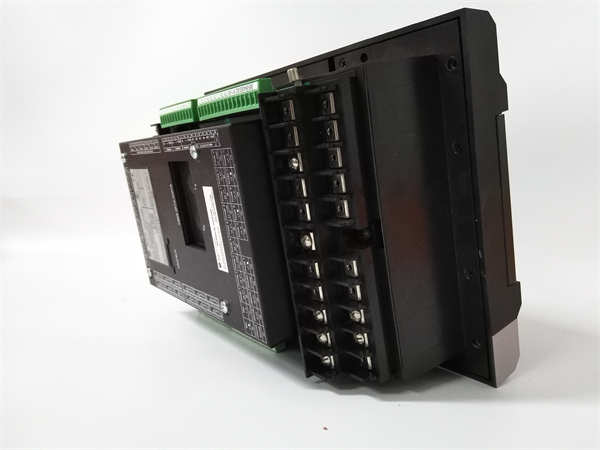

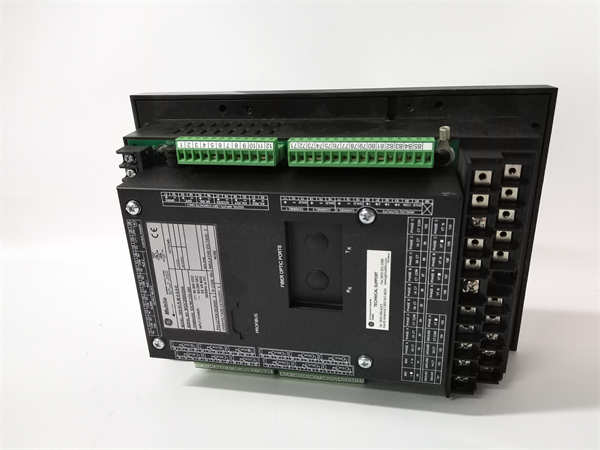

Product model : 369-HI-0-M-0-0-0-E
Control power input range : 110 to 250 volts DC, 100 to 240 volts AC, frequency 50/60 Hz
functions : including current unbalance and single-phase detection, ground fault, two-speed motor protection and phase overload curve
Event recording trigger : power failure, alarm, self-test, suppress, trip, waveform capture
two, the weight
box weight : 10 pounds
Outer weight : about 8 LBS
three, the role
Main purpose : 369-HI-0-M-0-0-0-0-e is a General Electric company 369 motor protection relay designed to protect and control motors and their supporting components, reduce troubleshooting time and extend system life
. Size
Approximate dimensions : H 11.5 “x x 5.5” x 8.5 “
Other descriptions also described as having a similar scale of 12 inches high x 5 inches wide x 8 inches long
Other parameters
Ground current input frequency : 20 to 100 Hz
Insulation type : Type I
phase current input conversion : true root-mean-square value, 1.04ms/sample
Maximum ambient humidity : up to 95% non-condensing
