369-H1-R-M-F-E-H-E

Description

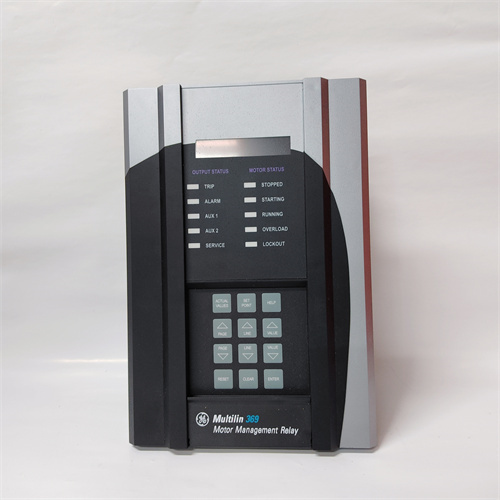

‌ specification ‌ : GE 369-H1-R-M-F-E-H-E is an integrated relay protector/motor management relay used to protect and monitor three-phase motors and related mechanical systems ‌.

‌ Weight ‌ :

The relay weighs about 10 pounds (or close to 10 pounds, depending on the model configuration) ‌.

‌ function ‌ :

Protect and monitor three-phase motors and their associated systems with a variety of basic functions and options ‌.
The ability to “learn” and adapt to the needs of each individual motor, and more specifically configure itself to suit the system to which it is assigned ‌.

‌ parameter ‌ :

Control power range: 110 to 250 volts DC, 100 to 240 volts AC, frequency 50/60 Hz ‌.
Differential switch time delay: <200 ms‌.
A variety of inputs and outputs are available to meet motor management needs, including RTD inputs, analog outputs, and more ‌.
An optional metering package increases access to the VT input, allowing monitoring of voltage and power components ‌.
‌ Dimensions ‌ : The size is about 29.6cm high x 10.7cm wide x 20.5cm long ‌.
In summary, the GE 369-H1-R-M-F-E-H-E is a powerful motor management relay for protecting and monitoring three-phase motors and their associated systems.
