Description
Parameters and specifications:
Communication interface: Supports a wide range of serial (RS232/RS422/RS485) and Ethernet TCP/IP communication functions.
Supported protocols include the Modicon Modbus protocol (via serial communication), the Modbus/TCP protocol (serial Modbus variant for TCP/IP Ethernet communication), and the proprietary Bently Nevada protocol (for communication with 3500 rack configuration and data acquisition packages).
Power requirements: For Modbus RS232/RS422 I/O modules, the typical power consumption is 5 watts; For the Modbus RS485 I/O module, the typical power consumption is 5.6 watts.
Data refresh time: The data acquisition rate depends on the frame configuration, but the refresh time cannot exceed 1 second for all modules in the 3500 frame.
Operating temperature: It can operate in the temperature range of -22 to 150°F (-30 to 65°C).
Size and weight:
Dimensions: H x W x D = 241 mm x 24.4mm x 242 mm.
Weight: 0.82 kg.
Features:
Connection mode: Connects to the 10BASE-T star topology Ethernet through the RJ45 port.
Functional safety: SIL 2 level.
Configurability: has configurable Modbus register function, can provide the same function as the initial value register.
Functions:

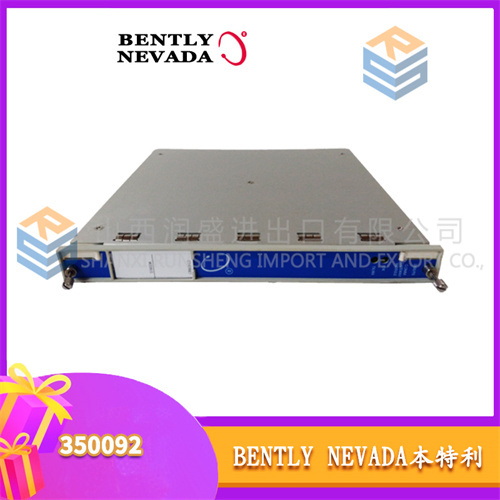

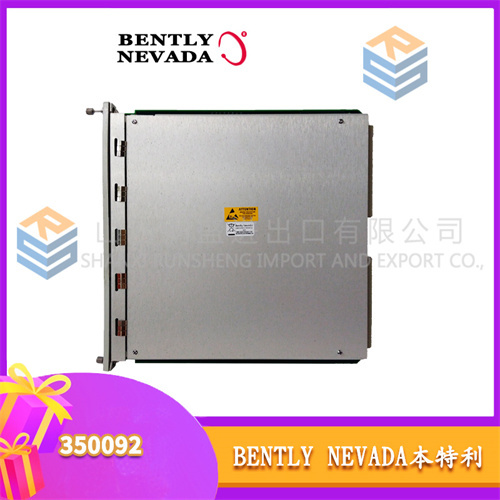

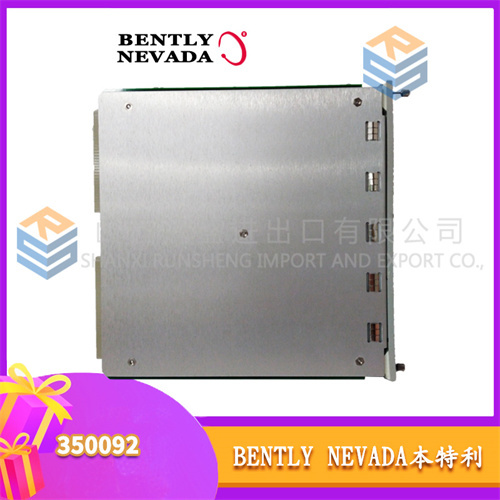

The 3500/92 Communication gateway module is primarily used to integrate the monitored values and status of all racks with process control and other automation systems for efficient transmission and sharing of data.
It also supports Ethernet communication with data acquisition software and 3500 rack configuration software, increasing the integration and flexibility of the system.
