Description
Size and weight:
Monitor module (motherboard) :
Dimensions: 241.3mm x 24.4mm x 241.8mm (9.50in x 0.96in x 9.52in)
Weight: 0.91kg (2.0lbs.)
I/O module (without safety gate) :
Dimensions: 241.3mm x 24.4mm x 99.1mm (9.50in x 0.96in x 3.90in)
Weight: 0.20kg (0.44lbs.)
I/O module (with safety grid) :
Dimensions: 241.3mm x 24.4mm x 163.1mm (9.50in x 0.96in x 6.42in)
Weight: 0.46kg (1.01lbs.)
Features:
Four-channel monitor: can accept signals from displacement, speed, acceleration sensors to complete a variety of vibration and position measurements.
Modular design: Each channel can be programmed using 3500 framework configuration software.
Digital and analog communication: highly flexible display options, software configurable, higher integration/fault tolerance.
Alarm and Event list: Provides mechanical protection by continuously comparing monitoring parameters and configured alarm Settings to drive alarms.
Functions:
The 3500/42M is a four-channel monitor designed to monitor signals from displacement, speed and acceleration sensors in real time and compare these signals with user-programmed alarm values. It can complete a variety of vibration and position measurements, providing operators and maintenance personnel with basic machine information for timely maintenance and protection.
Parameters and specifications:

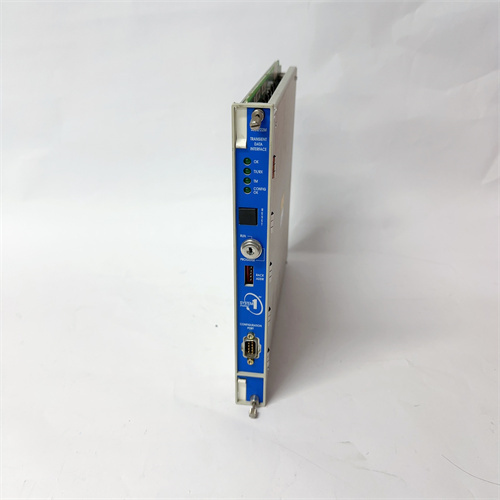

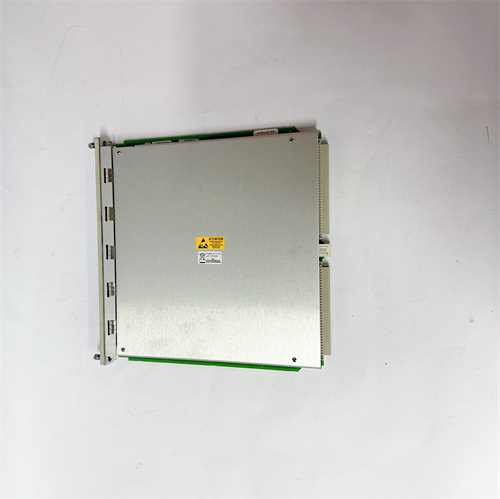

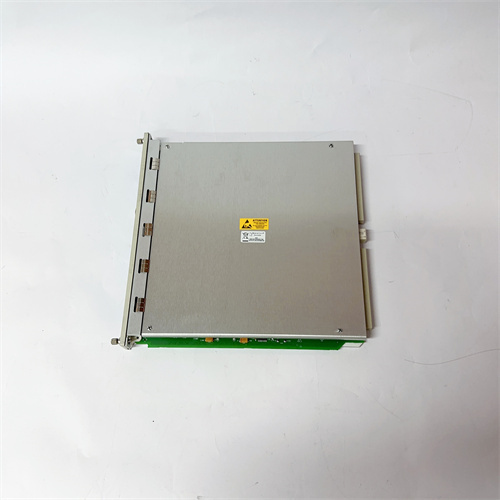

Model: 3500/42M
Manufacturer: Bently Nevada
Series: 3500 series
Input signal: -10vdc to +10vdc
Power consumption: 7.7 Watts
Shaft power supply: -24 Vdc
Resolution: 0.3662A/bit
Input voltage: 24 Vdc
Output voltage: 0~10 Vdc
