Description
Parameters:

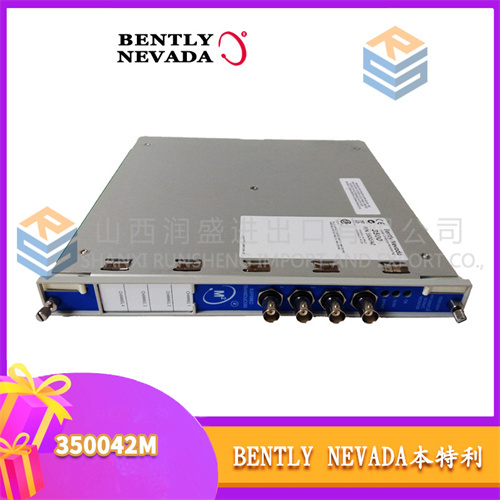

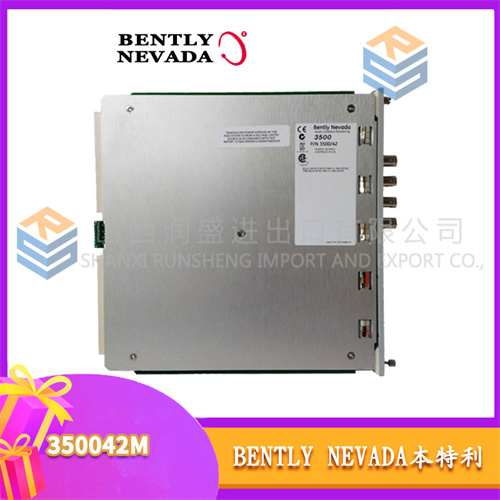

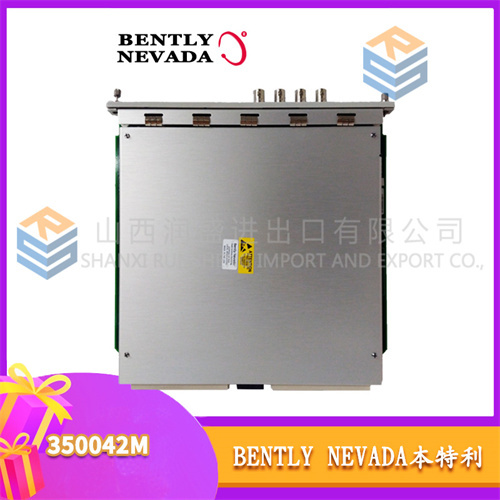

Model: 3500/42M
Type: 4 channel monitor
Input voltage: 24VDC
Output voltage: 0~10VDC
Specifications:
Series: Part of a series of monitors launched by Bently Nevada
Signal input: Receives signals from one to four proximity, acceleration, or speed sensors
Power consumption: Normal consumption is 7.7 watts
Resolution: 0.3662A/bit
Size and weight:
Monitor module (motherboard) :
Dimensions (H x W x D) : 241.3mm x 24.4mm x 241.8mm (9.50in x 0.96in x 9.52in)
Weight: 0.91kg (2.0lbs)
I/O module (without safety gate) :
Dimensions (H x W x D) : 241.3mm x 24.4mm x 99.1mm (9.50in x 0.96in x 3.90in)
Weight: 0.20kg (0.44lbs)
I/O module (with safety grid) :
Dimensions (H x W x D) : 241.3mm x 24.4mm x 163.1mm (9.50in x 0.96in x 6.42in)
Weight: 0.46kg (1.01lbs)
Features:
Multi-channel monitoring: Support multi-channel vibration monitoring, can simultaneously monitor the vibration of multiple equipment or multiple bearings
Real-time monitoring: With real-time monitoring function, it can continuously monitor the vibration of the equipment and provide real-time data feedback
Spectrum analysis: Support spectrum analysis function, can carry out spectrum analysis of vibration data, identify fault frequency and abnormal vibration mode
Alarm function: When the vibration of the equipment is detected beyond the set threshold, the alarm function may be triggered to alert the operator to the abnormal condition of the equipment
Historical data recording: With historical data recording function, it can record vibration data and save historical records for subsequent analysis and fault diagnosis
Communication interface: Supports communication with other monitoring systems or data acquisition systems for data sharing and integration
Functions:
Mechanical protection: mainly used to monitor and analyze the vibration of industrial equipment, providing continuous and online monitoring functions to achieve mechanical protection applications
Fault detection: The real-time monitoring and spectrum analysis function can detect the fault frequency and abnormal vibration mode of the device, helping to prevent device failures in advance
Information notification: When the vibration of the equipment exceeds the set threshold, the alarm function is triggered to notify the operation and maintenance personnel of information about key machine information to ensure the safe operation of the equipment
