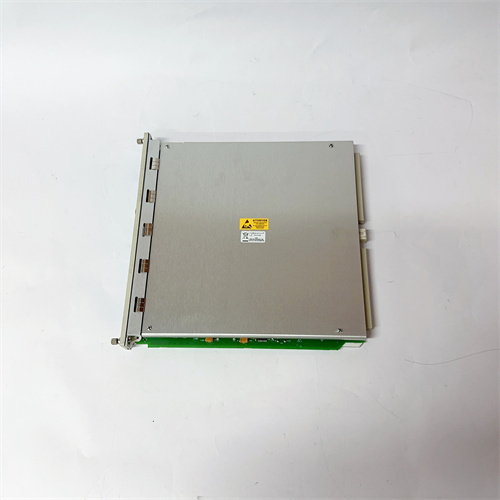

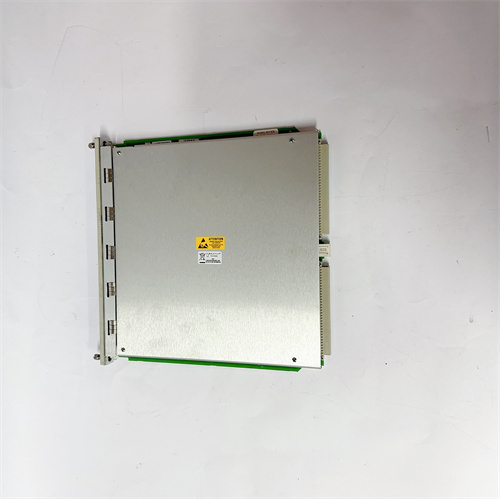

3500/42 128229-01

Description

trait
Four-channel design: The ability to monitor input from multiple sensors simultaneously
High accuracy: Provides high precision signal processing capabilities to ensure accurate monitoring and diagnostic results
User programmable alarm: The adjusted signal is compared with a user programmable alarm to provide mechanical protection
Modular design: Each channel provides independent 4 to 20mA scale values for higher integration and fault tolerance
Easy installation and maintenance: Designed to be easy to install and maintain to reduce use and maintenance costs argument
Product Type: Four-channel monitor with Prox/Seismic I/O module
Input: Receives input from proximity sensors and seismic sensors
Output: Provides vibration and position information and compares the adjusted signal with a user programmable alarm
Communication interface: May support a variety of communication interfaces, such as Ethernet, Modbus, etc
specification
Number of channels: four channels
Features: Vibration and position measurement, as well as user programmable alarms
Software support: Programming with 3500 framework configuration software
dimension
Overall size (module) :
Height x width x depth: 241.3mm x 24.4mm x 241.8mm (9.50in x 0.96in x 9.52in)
Another possible size (monitor module) : 24.18 cm x 2.44cm x 24.13cm
I/O module (without safety grid) : H x W x D: 241.3mm x 24.4mm x 99.1mm (9.50in x 0.96in x 3.90in)
I/O module (with safety grid) : H x W x D: 241.3mm x 24.4mm x 163.1mm (9.50in x 0.96in x 6.42in)
weight
Overall weight: 0.91kg (2.0lbs)
I/O module (without safety gate) : 0.20kg (0.44lbs)
I/O module (with safety grid) : 0.46kg (1.01lbs)
