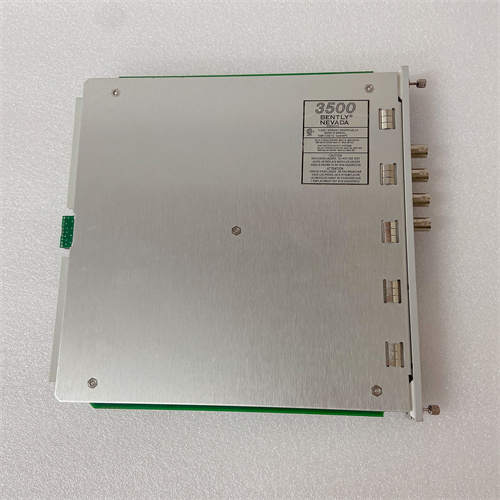

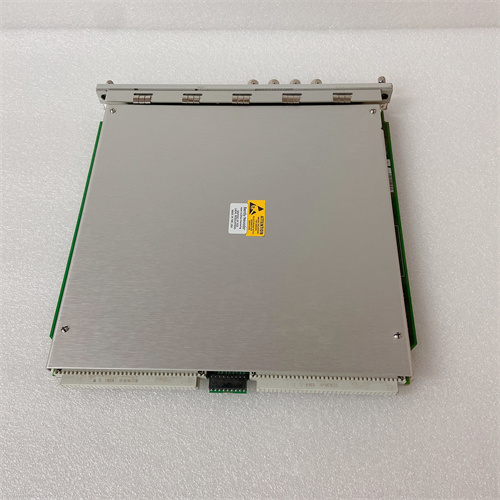

3500/40M 176449-01

Description

argument
Type: four-channel monitor.
Sensitivity:
Radial vibration: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Axial displacement: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil).
Differential expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil).
Accuracy:
Pass frequency and gap: ±0.33% of full scale, up to ±1%.
1X & 2X: ±0.33% of full scale, up to ±1%.
specification
Brand: Bently Nevada.
Series: 3500 series.
Model: 3500/40M 176449-01.
Weight:
Product weight: 1.29 kg.
Shipping weight: 2.5 kg.
trait
High accuracy and reliability: The use of advanced technology and high-quality materials to ensure high precision monitoring results and high reliability.
Wide range of measurement capabilities: multiple physical quantities can be monitored, including vibration, displacement, etc.
Advanced monitoring and diagnosis: Monitor the operating status of equipment in real time, identify potential problems in time, and provide detailed fault diagnosis information.
Easy to install and configure: the design is simple and easy to install, and it can be easily connected to a variety of sensors and control systems.
Powerful alarm system: real-time monitoring of the operating status of the equipment, and trigger the alarm according to the preset alarm value.
Isolation amplification: The module can isolate and amplify the input signal to adapt to different sensor and device requirements.
Multiple input/output interfaces: Supports a variety of input/output interfaces, such as 4-20mA, 0-5V, etc.
Strong anti-interference ability: has a strong anti-interference ability, can reduce the impact of external interference on the signal, improve the measurement accuracy and stability.
