Description
Size and weight:

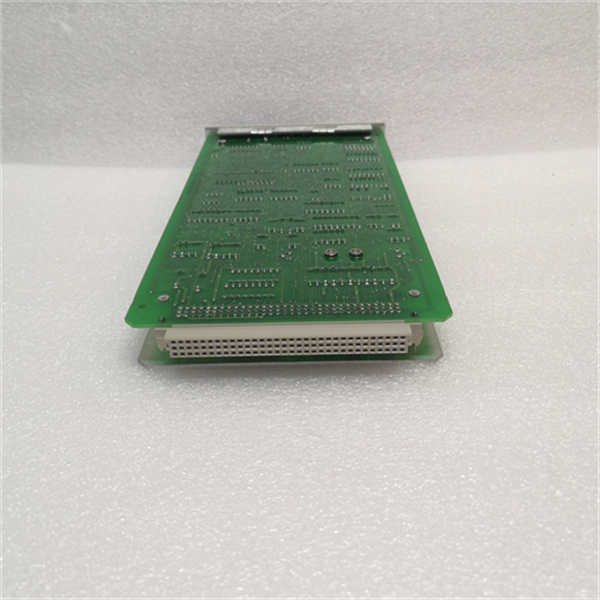

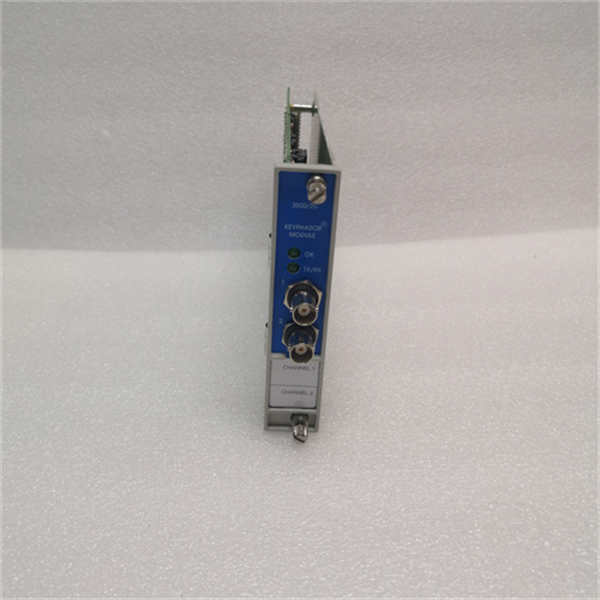

The exact size and weight may vary by supplier or manufacturer, but in general, the module is a half-height, dual-channel module with dimensions (D x W x H) of roughly 25.65cm x 2.44cm x 11.99cm and a weight of 0.34kg.
Series:
The product is part of Bently Nevada’s 3500XL family.
Features:
Dual channel module: can accept two sensor signals.
Enhanced signal processing capability: Provides extended Keyphasor signal processing capability compared to the original design.
Strong compatibility: Maintains full backward compatibility with existing Keyphasor modules and can be used with legacy systems.
Two types of key trust numbers: The system provides two types of key trust numbers: “Processed” and “unprocessed”. Users can select the two types of key trust numbers as required.
Functions:
This module is mainly used in steam turbine systems and provides key phaser signals to monitor modules in 3500 racks. It receives the input signal from the sensor and converts it into a digital signal to monitor the relative position of the key phase marker on the shaft to the sensor, which is essential for the protection and monitoring of large rotating machinery such as steam turbines.
Part of the 3500XL family from Bently (now Bentley, Bently Nevada), this model is an enhanced key phaser module. It accepts the input signal from the proximity probe or magnetic pickup and converts the signal into a digital key trust signal to indicate when the key phase marker on the axis coincides with the key phase sensor.
