Description
trait
Data collection: Steady state and transient dynamic (waveform) data is continuously collected and transmitted to the host software over an Ethernet link.
Mode switching: Used to switch 3500 racks between “RUN” and “Programming” modes, RUN mode prevents configuration modifications while allowing the racks to operate normally.
Static data collection: has the traditional static data collection function.
High-resolution transient data logging: An optional channel-enabled disk can be used to record dynamic, high-resolution transient data.
Communication processing capabilities: The 3500 rack contains the communication processing capabilities of the TDI, and although the TDI performs some tasks shared by the entire rack, it is not a critical component of the monitoring system.
Parameters and specifications
Manufacturer: Bently Nevada
Series: 3500 series
Input signal: -10 Vdc to +10 Vdc (Note: The input voltage range mentioned in some search results may vary, such as 12-48VDC or 10V to 30V DC, which may be the specification for different models or application scenarios)
Power consumption: 7.7 Watts
Shaft and sensor power supplies: -24 Vdc

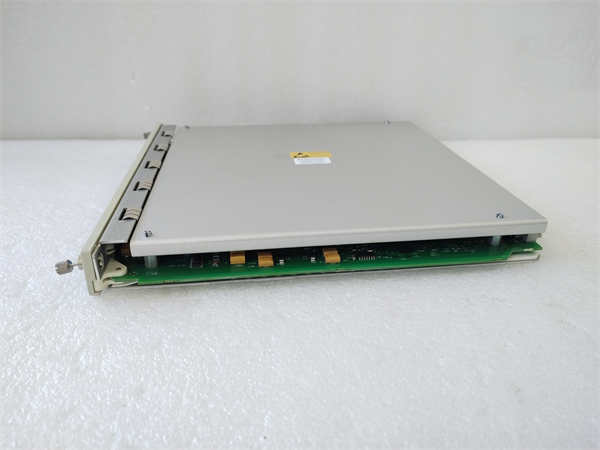

Product Type: Transient Data Interface Module (TDI)
Temperature: The operating temperature range may vary from source to source, but general industrial equipment operates in ranges such as 25 degrees Celsius or -20°C to +50°C
Communication protocol: Supports communication with host software through Ethernet links
Memory capacity: The only limit on the number of instantaneous events that can be collected
Size and weight
Size: According to the search results, there are two different size specifications. One is 9.50 x 4.50 x 1.00 inches (i.e. 241.3mm x 114.3mm x 25.4mm) and the other is 170mm x 105mm x 32mm.
Weight: There are also different weight specifications, one is 0.85 pounds (about 0.385 kg), the other is about 120 grams.
