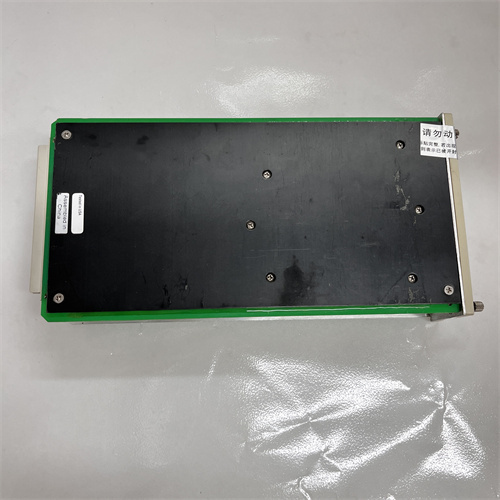

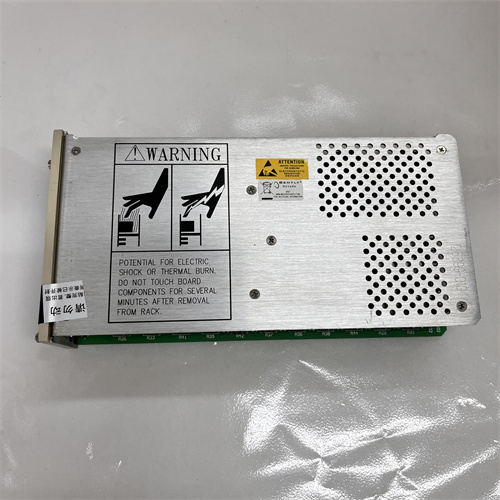

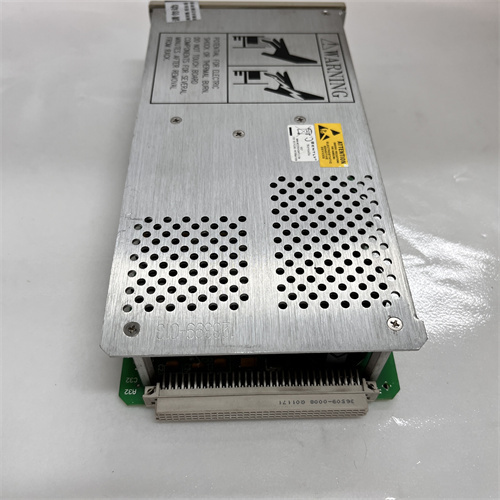

3500/15

Description

trait
High reliability: real-time monitoring and control of industrial processes and equipment
Real-time monitoring: Support a variety of control modes and large screen display
Hot swap: Supports hot swap to implement standard operations
Multiple communication protocols: Interface protocols and specifications support multiple communication protocols
Environmental adaptability: It can work stably in different temperature and humidity environments
Modular design: The 3500 power supply is a half-height module that can be installed in a specially designed notch on the left side of the frame
Redundant power supply: When two power supplies are installed, the upper power supply serves as the primary power supply and the lower power supply serves as the standby power supply

argument
Input voltage:
High voltage AC: 175 to 264 Vac rms (247 to 373 Vac, pk), 47 to 63Hz
Low voltage AC: 85 to 132 Vac rms (120 to 188 Vac, pk), 47 to 63 Hz
HVDC: 88 to 140 Vdc
Low voltage DC: 20 to 30 Vdc
Operating frequency: 47 to 63 Hz
Out-of-limit protection: For all power supply types, low voltages will not damage the power supply or PIM, but out-of-range voltages will open fuses on the PIM
Power OK LED: When the power is working normally, the LED lights up
Operating temperature: -30℃ to +65℃ (-22 F to +150 F)
Storage temperature: -40℃ to +85℃ (-40 F to +185 F)
Humidity: 95%, non-condensing
specification
Type: Low voltage DC power module (such as 114M5335-01)
Module size: 120.7mm x 50.8mm x 251.5mm (H x W x D)
Module weight: 1.39kg (3.06lbs.)
Power input module dimensions: 120.7mm x 25.4mm x 114.3mm (H x W x D)
Power input module Weight: 0.34kg (0.75lbs.)
